DC Cross Flow Fans

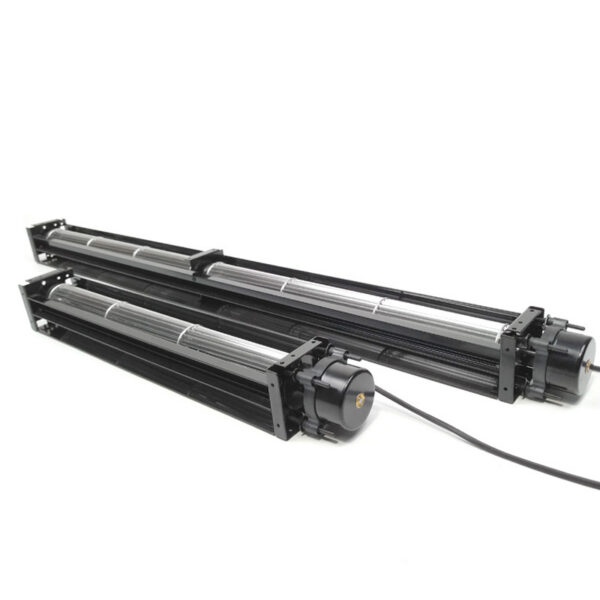

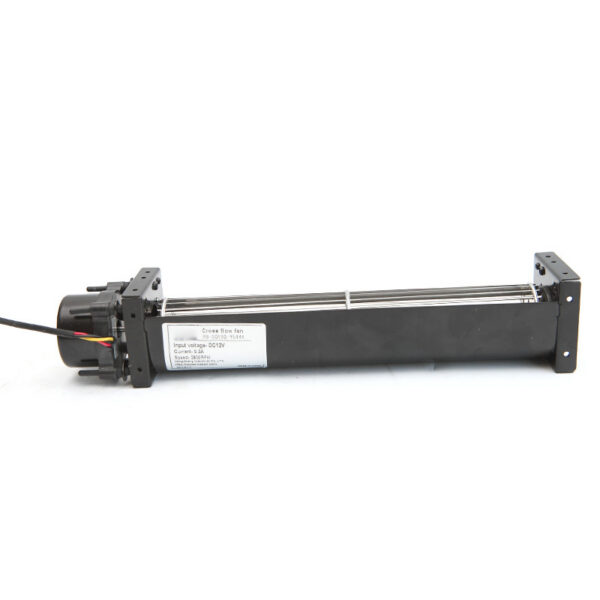

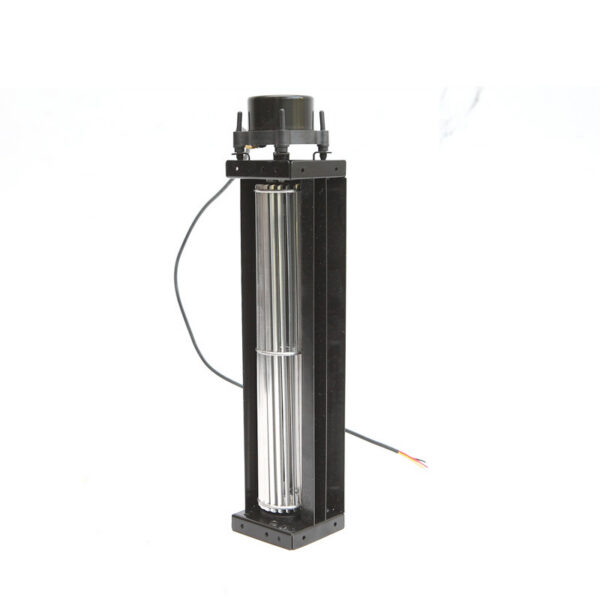

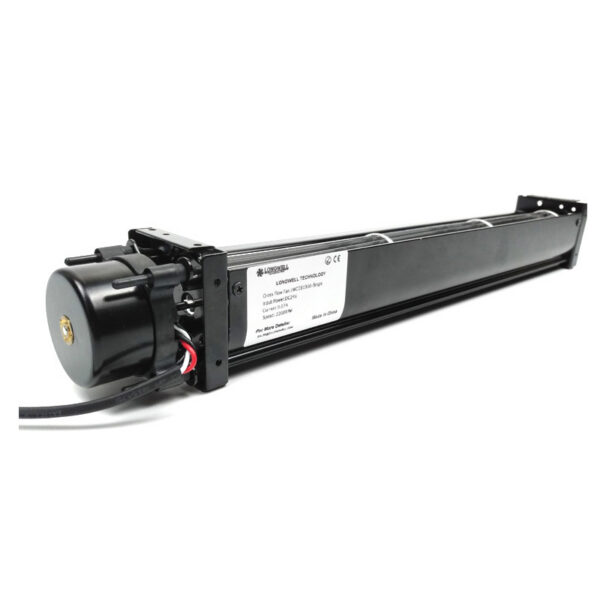

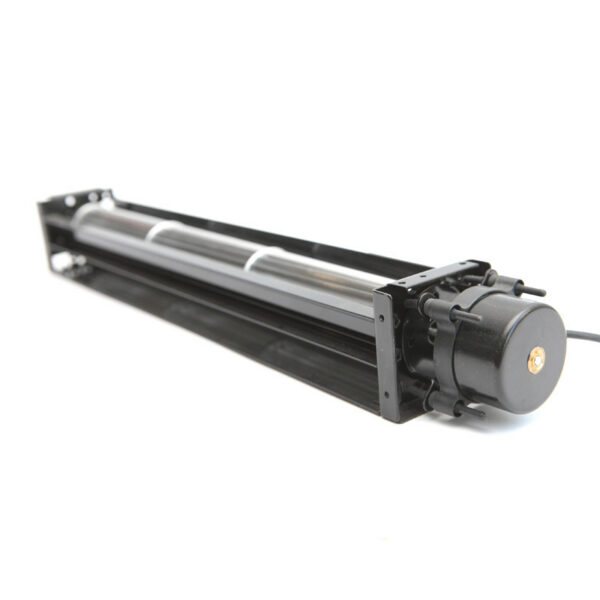

30mm DC 12V 24V Cross Flow Fans

Model NO. LWCD-30 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: DC Cross Flow Fans

Technical Features :

Motor Type : BLDC Motor with 0~10V / PWM speed Control ;
Material : Aluminum Alloy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

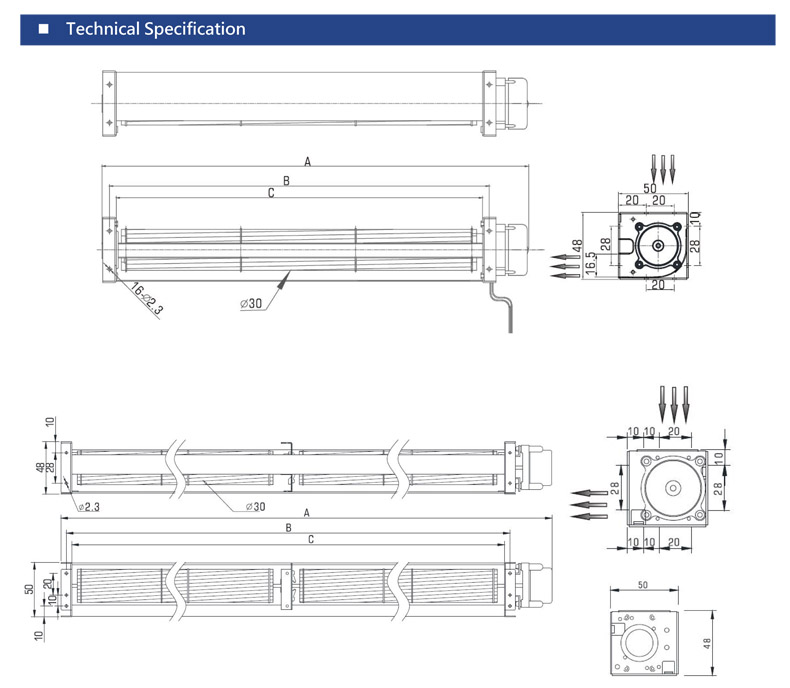

Model	Dimention(mm）			Voltage/ Frequency	Current	Speed	Pressure	Airflow	Noise	Blower
Model	A	B	C	V/HZ	A	rpm	Pa	m³/h	dB(A)	Blower
LWCD-3090L-10	145	132	98	12	0.1	3000	17	35	29	single
LWCD-3090M-10	145	132	98	24	0.05	3000	17	35	29	single
LWCD-30120L-10	207	194	160	12	0.12	2800	15	42	30	single
LWCD-30120M-10	207	194	160	24	0.07	2800	15	42	30	single
LWCD-30190L-10	245	232	198	12	0.14	2700	14	52	31	single
LWCD-30190M-10	245	232	198	24	0.08	2700	14	52	31	single
LWCD-30250L-10	295	282	248	12	0.16	2600	14	65	32	single
LWCD-30250M-10	295	282	248	24	0.09	2600	14	65	32	single
LWCD-30290L-10	347	334	300	12	0.18	2500	13	72	33	single
LWCD-30290M-10	347	334	300	24	0.09	2500	13	72	33	single
LWCD-30350L-10	399	386	352	12	0.2	2400	13	84	34	single
LWCD-30350M-10	399	386	352	24	0.1	2400	13	84	34	single
LWCD-30530M-20	585.5	542	530	24	0.12	2500	17	72	33	double
LWCD-30610M-20	665.5	622	610	24	0.16	2450	17	85	32	double
LWCD-30650M-20	705.5	662	650	24	0.17	2400	16	90	34	double
LWCD-30718M-20	773.5	730	718	24	0.18	2400	16	98	35	double
LWCD-30800M-30	855.5	812	800	24	0.19	2400	16	110	36	triple
LWCD-30854M-30	909.5	866	854	24	0.22	2400	16	120	36	triple
LWCD-30920M-30	975.5	932	920	24	0.22	2400	16	129	37	triple
LWCD-30986M-30	1041.5	998	986	24	0.27	2400	16	138	37	triple
LWCD-301082M-30	1137.5	1097	1082	24	0.31	2400	16	152	38	triple

Model NO.	LWCD-30 Series
Delivery	FOB/ EXW/ FCA /CIF
Minimum Order Quantity	100 packs
Supply Ability	50000 packs / Month
Country of Origin	China
Stock Time	18-23 Days
