AC Cross Flow Fans

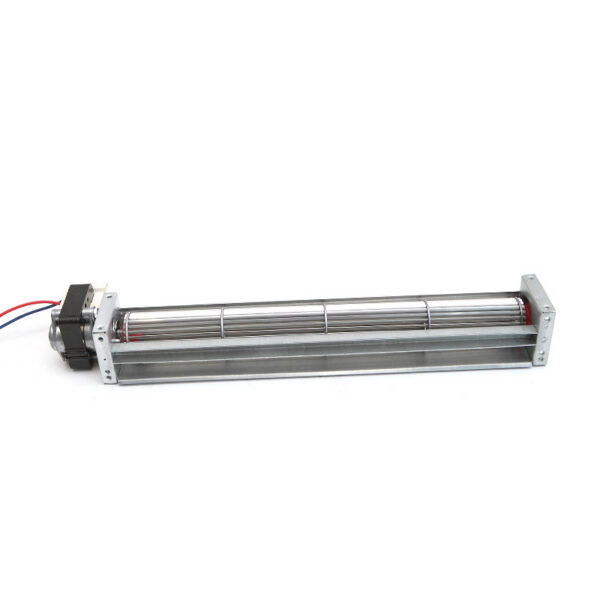

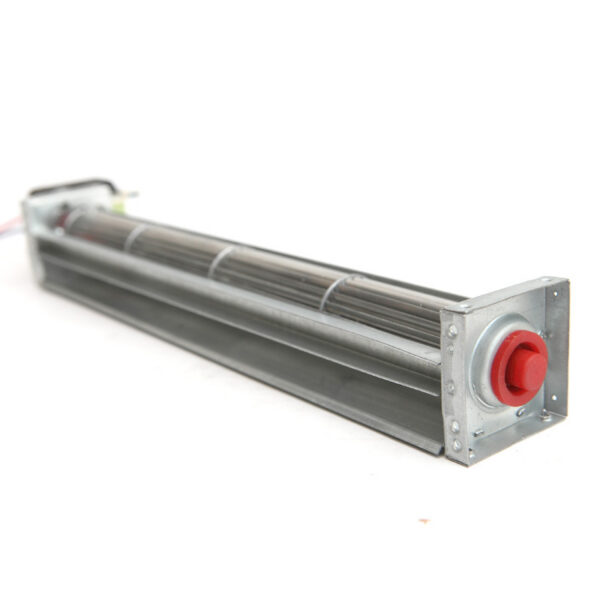

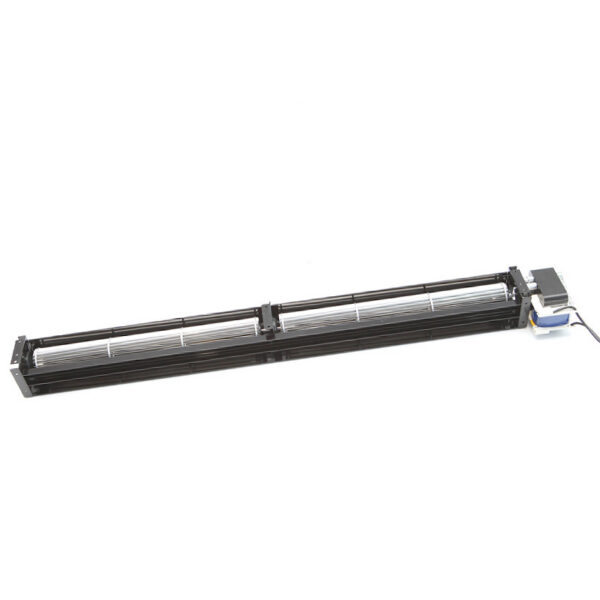

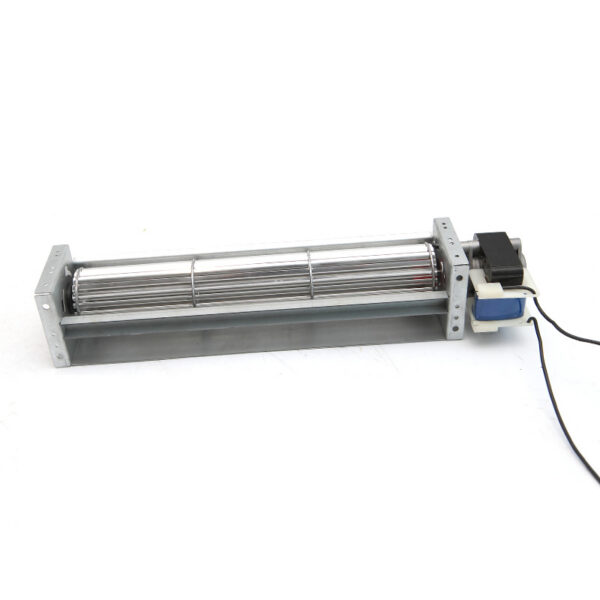

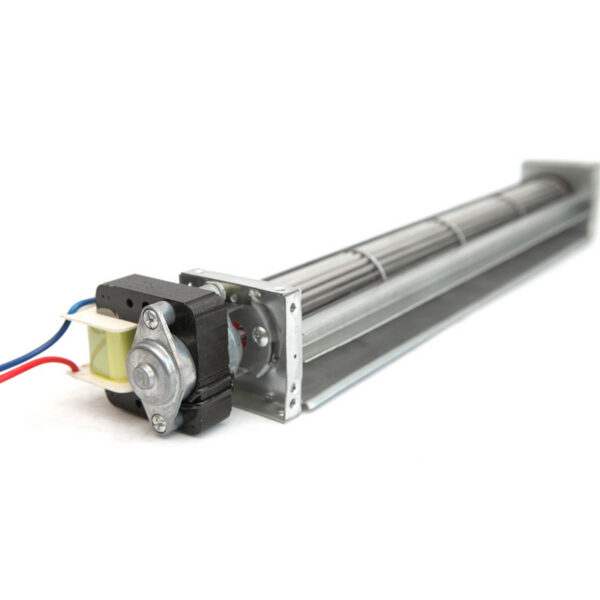

30mm AC 115v 230v cross flow fan blower

Model NO. LWCA-30 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: AC Cross Flow Fans

Technical Features :

Impeller Diameters : 30mm;

Fan length : Up to 1056mm ;

Motor Type : AC Shaded Pole Motor ;
Housing Material :Galvanized Metal Sheet ;

Impeller Material : Aluminum Alooy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

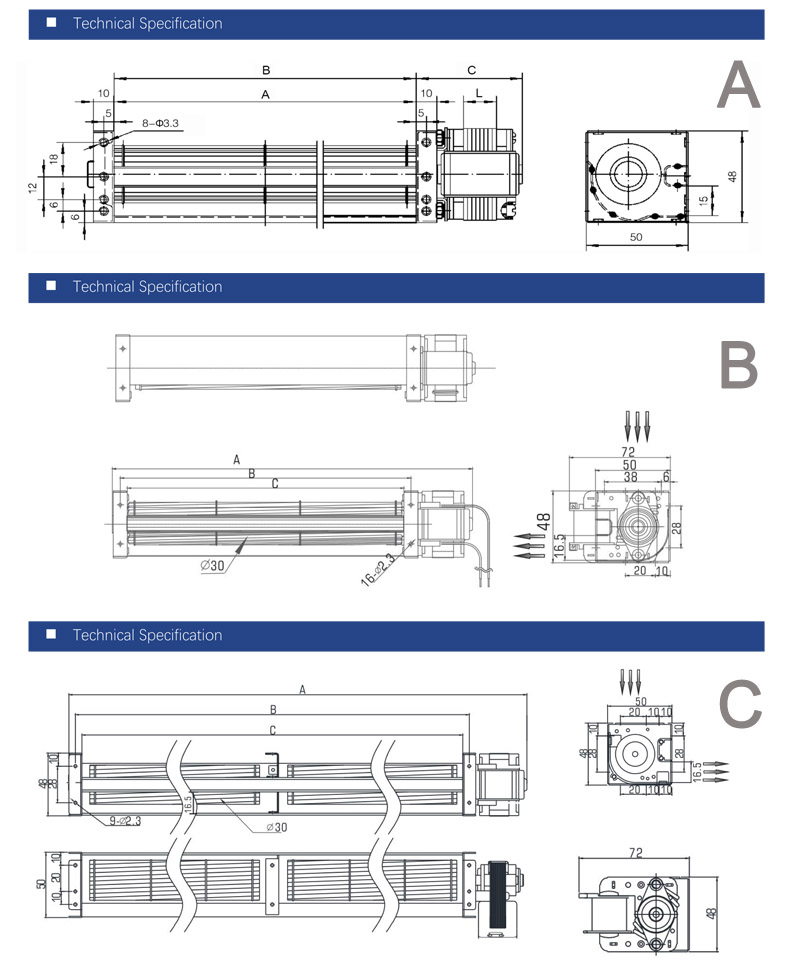

Model	Dimention(mm）			Voltage	Frequency	Power	Speed	Pressure	Airflow	Noise
Model	A	B	C	V	Hz	W	RPM	mmH2O/Pa	m³/h	dB(A)
LWCA-30120S-10	120	120	46	220	50	8	2500	0.7/7	22	37
LWCA-30180S-10	180	180	46	220	50	9	2700	1.2/12	46	38
LWCA-30240S-10	240	240	51	220	50	12	2600	1.3/13	62	39
LWCA-30300S-10	300	300	55	220	50	15	2700	1.4/14	83	40
LWCA-30360S-10	360	360	55	220	50	18	2600	1.4/14	95	42
LWCA-3090S-10	158	108	98	120	60	15.3	3300	11	25	31
LWCA-3090S-10	158	108	98	230	50	13.5	2700	10	20	31
LWCA-AC30150S-10	222	170	160	120	60	16.5	3200	11	48	32
LWCA-AC30150S-10	222	170	160	230	50	13.4	2700	10	41	32
LWCA-AC30190S-10	256	208	198	120	60	15.8	3100	13	60	32
LWCA-AC30190S-10	256	208	198	230	50	13.7	2600	10	50	32
LWCA-AC30250S-10	308	258	248	120	60	16.3	3000	14	76	32
LWCA-AC30250S-10	308	258	248	230	50	14.4	2500	10	62	32
LWCA-AC30290S-10	365	310	300	120	60	16.7	2900	15	90	34
LWCA-AC30290S-10	365	310	300	230	50	14.4	2500	13	81	34
LWCA-AC30350S-10	411	362	352	120	60	16.9	2780	15	106	35
LWCA-AC30350S-10	411	362	352	230	50	14.4	2500	14	96	35
LWCA-AC30530S-20	590	540	530	220	50	19.7	2550	18	100	33
LWCA-AC30610S-20	670	620	610	220	50	20.3	2400	18	115	32
LWCA-AC30718S-20	778	728	718	220	50	21.1	2400	18	120	35
LWCA-AC30800S-30	860	810	800	220	50	21.1	2400	17	110	35
LWCA-AC30854S-30	914	864	854	220	50	21.1	2400	17	135	36
LWCA-AC30920S-30	980	930	920	220	50	21.1	2400	17	145	36
LWCA-AC30986S-30	1056	996	986	220	50	21.1	2400	17	170	38

Model NO.	LWCA-30 Series
Delivery	FOB/ EXW/ FCA /CIF
Minimum Order Quantity	100 packs
Supply Ability	50000 packs / Month
Country of Origin	China
Stock Time	18-23 Days
