DC Cross Flow Fans

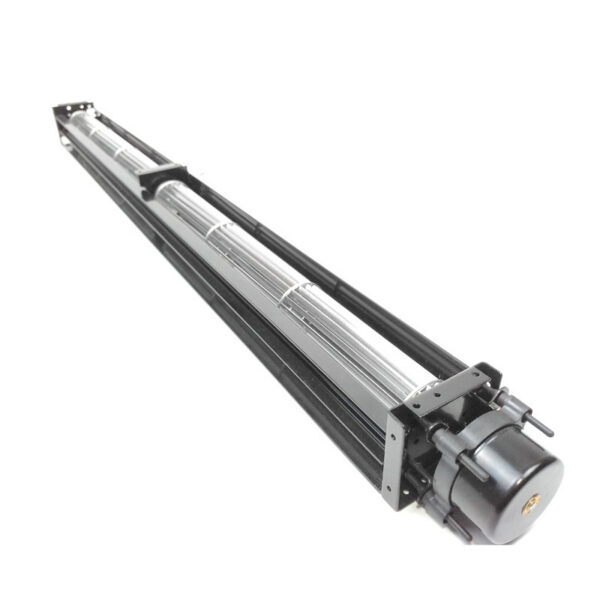

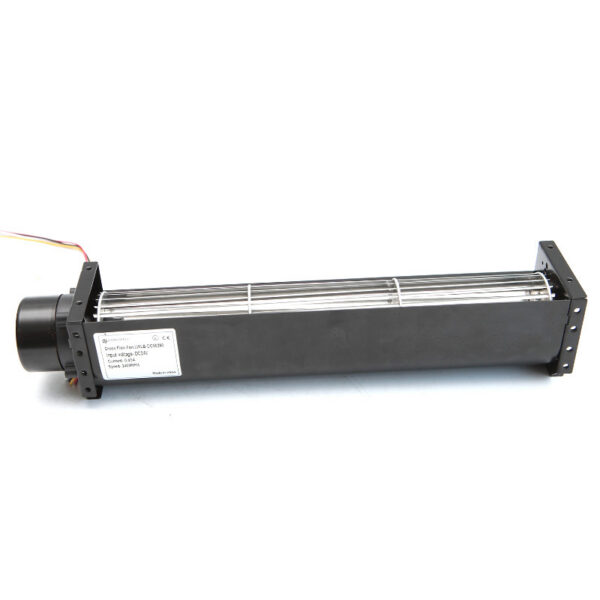

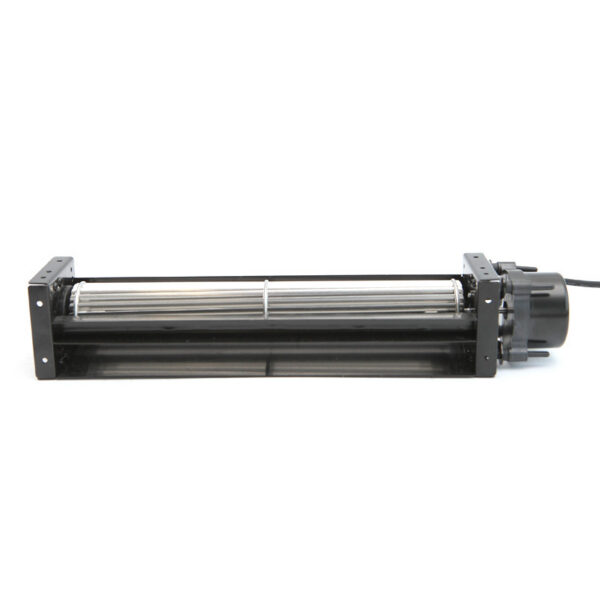

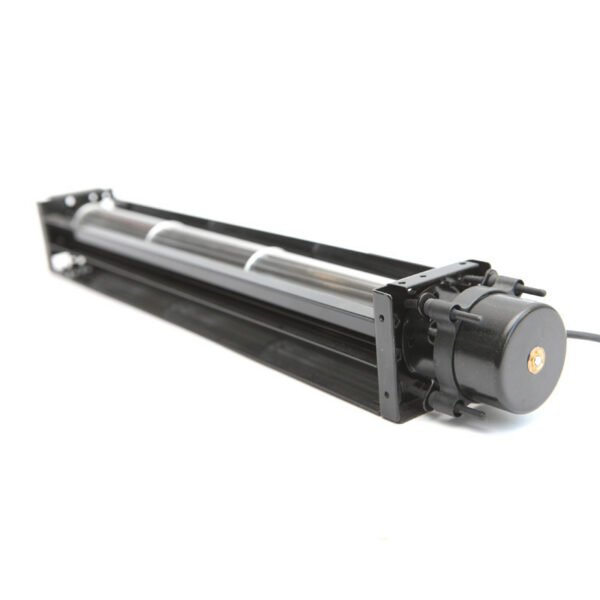

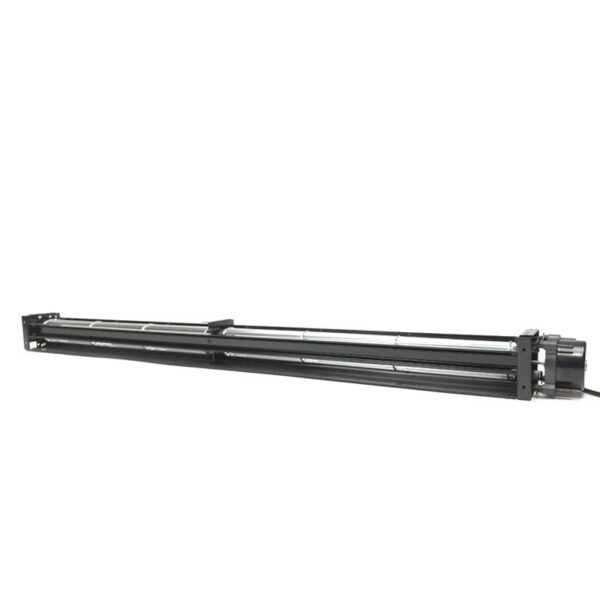

40mm DC 12V 24V Tangential Fan Blower for floor heating , cooling system

Model NO. LWCD-40 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: DC Cross Flow Fans

Technical Features :

Impeller Diameters : 40mm;

Fan length : Up to 1400mm ;

Motor Type : BLDC Motor with 0~10V / PWM speed Control ;
Material : Aluminum Alloy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

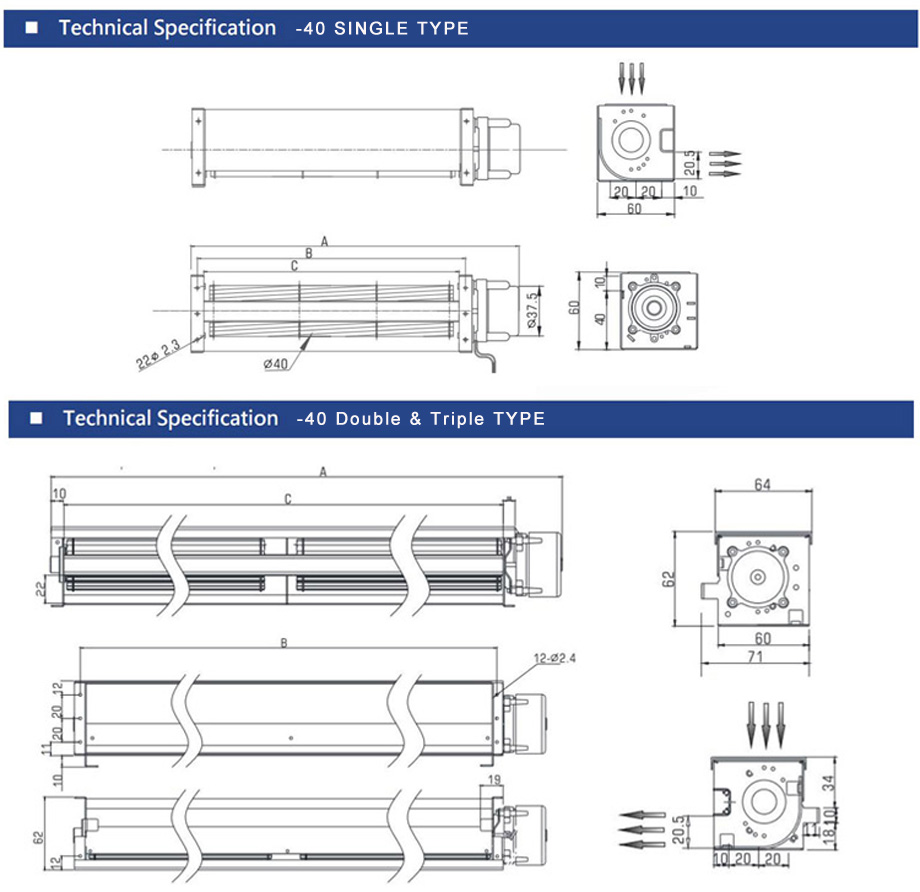

Model	Dimention(mm）			Voltage/ Frequency	Current	Speed	Pressure	Airflow	Noise	Blower
Model	A	B	C	V/HZ	A	rpm	Pa	m³/h	dB(A)	Blower
LWCD-4090L-10	149	108	98	12	0.12	3000	28	42	33	Single
LWCD-4090M-10	149	108	98	24	0.07	3000	28	42	33	Single
LWCD-40120L-10	210	170	160	12	0.18	2700	25	60	33	Single
LWCD-40120M-10	210	170	160	24	0.1	2700	25	60	33	Single
LWCD-40190L-10	249	208	198	12	0.2	2500	24	84	32	Single
LWCD-40190M-10	249	208	198	24	0.12	2600	24	84	35	Single
LWCD-40250L-10	300	260	250	12	0.23	2400	23	107	34	Single
LWCD-40250M-10	300	260	250	24	0.13	2400	23	107	35	Single
LWCD-40290L-10	352	310	300	12	0.26	2300	21	126	35	Single
LWCD-40290M-10	352	310	300	24	0.14	2300	21	126	34	Single
LWCD-40350L-10	417	358	348	12	0.29	2200	20	144	34	Single
LWCD-40350M-10	417	358	348	24	0.16	2100	20	144	34	Single
LWCD-40420L-10	472	430	420	12	0.32	2000	18	156	35	Single
LWCD-40420M-10	472	430	420	24	0.17	2000	18	156	35	Single
LWCD-40530M-20	580	540	530	24	0.24	2100	19	150	34	double
LWCD-40610M-20	670	620	610	24	0.29	2100	19	170	35	double
LWCD-40700M-20	750	710	700	24	0.35	2100	19	195	35	double
LWCD-40800M-30	850	810	800	24	0.39	2000	18	220	36	Triple
LWCD-40854M-30	904	864	854	24	0.42	2000	18	235	36	Triple
LWCD-40920M-30	973	930	920	24	0.23	2000	18	253	37	Triple
LWCD-401055M-30	1108	1065	1055	24	0.27	2000	18	290	38	Triple
