Technical Features :
Impeller Diameters : 60mm;
Fan length : Up to 1400mm ;
Motor Type : BLDC Motor with 0~10V / PWM speed Control ;
Material : Aluminum Alloy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

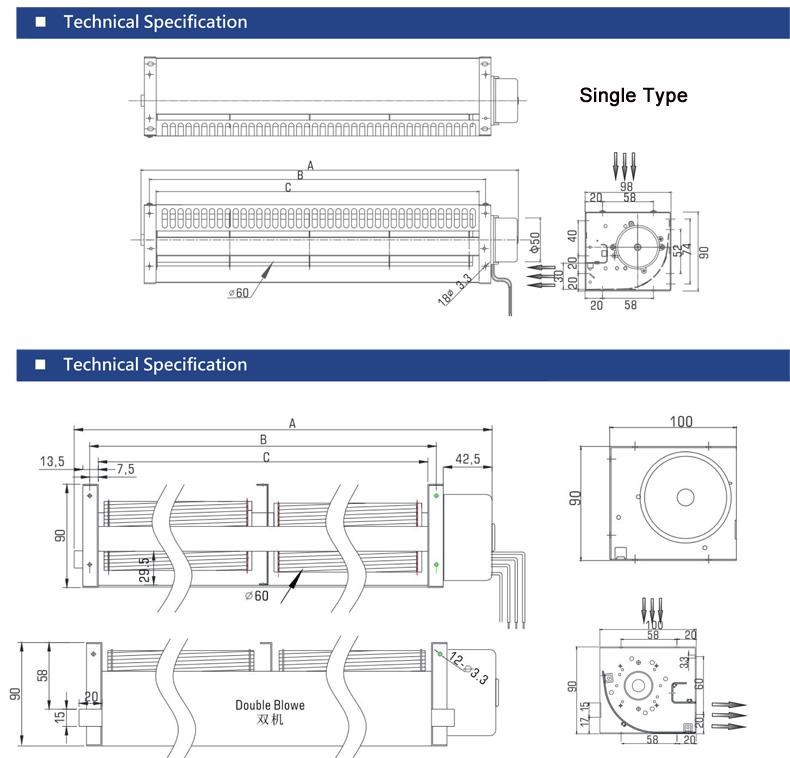

| Model | Dimention(mm） | Voltage/ Frequency |
Current | Speed | Pressure | Airflow | Noise | Blower | ||
| A | B | C | V/HZ | A | rpm | Pa | m³/h | dB(A) | ||
| LWCD-60120L-10 | 186 | 138 | 123 | 12 | 0.74 | 2600 | 52 | 102 | 45 | Single |
| LWCD-60120M-10 | 24 | 0.35 | 2600 | 52 | 102 | 45 | Single | |||
| LWCD-60180L-10 | 246 | 199 | 184 | 12 | 1.00 | 2400 | 47 | 139 | 46 | Single |
| LWCD-60180M-10 | 24 | 0.47 | 2350 | 47 | 139 | 45 | Single | |||
| LWCD-60240L-10 | 307 | 259 | 245 | 12 | 1.20 | 2200 | 43 | 169 | 45 | Single |
| LWCD-60240M-10 | 24 | 0.55 | 2200 | 43 | 169 | 45 | Single | |||
| LWCD-60300L-10 | 368 | 321 | 306 | 12 | 1.35 | 2100 | 41 | 192 | 43 | Single |
| LWCD-60300M-10 | 24 | 0.63 | 2000 | 41 | 192 | 43 | Single | |||
| LWCD-60360L-10 | 430 | 383 | 368 | 12 | 1.45 | 2000 | 41 | 212 | 43 | Single |
| LWCD-60360M-10 | 24 | 0.67 | 1900 | 38 | 212 | 42 | Single | |||
| LWCD-60420L-10 | 492 | 444 | 429 | 12 | 1.53 | 1900 | 38 | 254 | 42 | Single |
| LWCD-60420M-10 | 24 | 0.73 | 1800 | 36 | 254 | 42 | Single | |||
| LWCD-60420M-10(2) | 24 | 2.55 | 3200 | 86 | 537 | 56 | Single | |||
| LWCD-60520M-10 | 600 | 535 | 520 | 24 | 0.6 | 1800 | 50 | 330 | 47 | single |
| LWCD-60610M-10 | 690 | 625 | 610 | 24 | 0.6 | 1800 | 50 | 380 | 47 | single |
| LWCD-60640M-10 | 720 | 655 | 640 | 24 | 0.7 | 1800 | 52 | 400 | 48 | double |
| LWCD-60720M-20 | 780 | 715 | 700 | 24 | 0.7 | 1800 | 52 | 440 | 48 | double |
| LWCD-60750M-20 | 830 | 765 | 750 | 24 | 0.8 | 1800 | 52 | 470 | 48 | double |
| LWCD-60870M-20 | 950 | 885 | 870 | 24 | 1 | 1800 | 52 | 550 | 49 | double |
| LWCD-601100M-30 | 1185 | 1120 | 1105 | 24 | 1.5 | 1800 | 60 | 630 | 52 | triple |
| LWCD-601300M-30 | 1385 | 1320 | 1305 | 24 | 2.2 | 1800 | 60 | 820 | 54 | triple |
