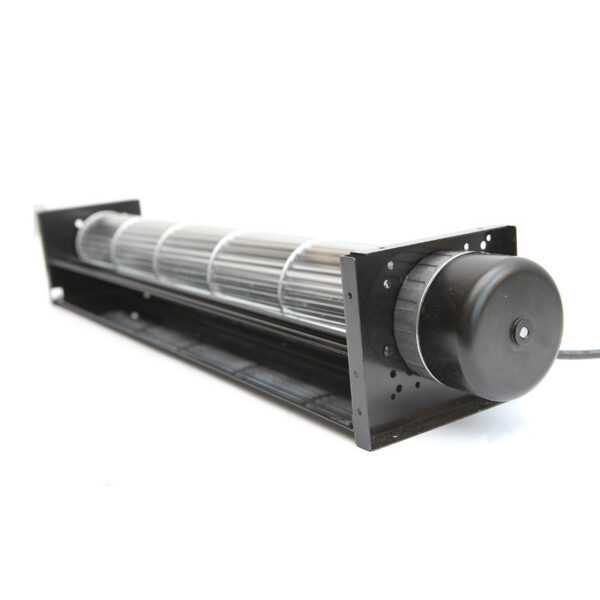

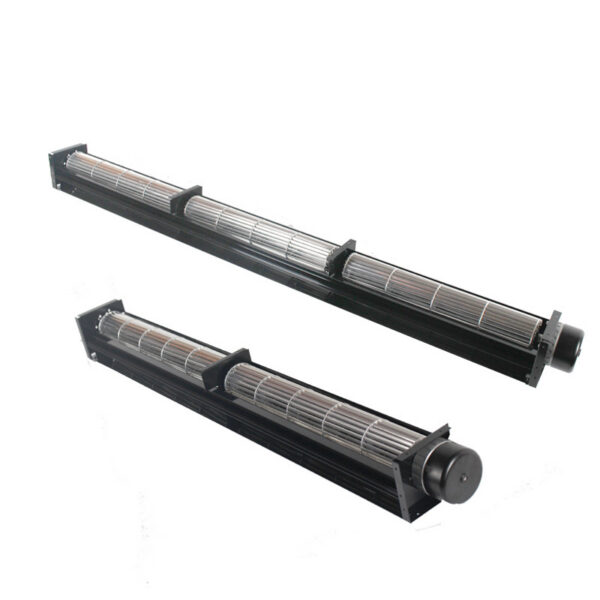

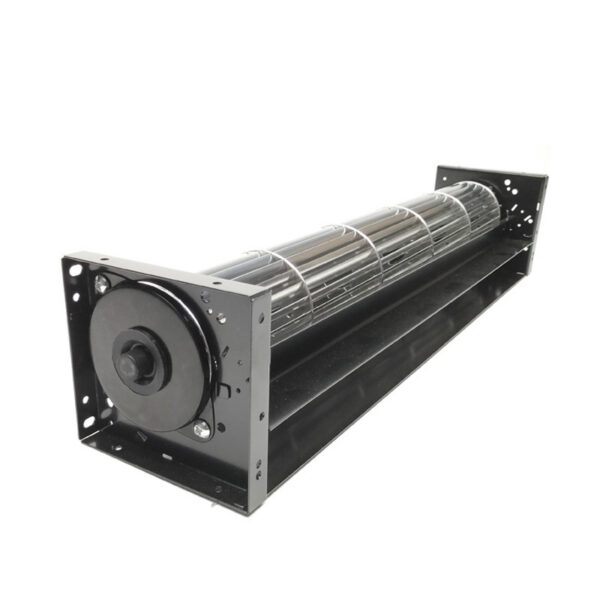

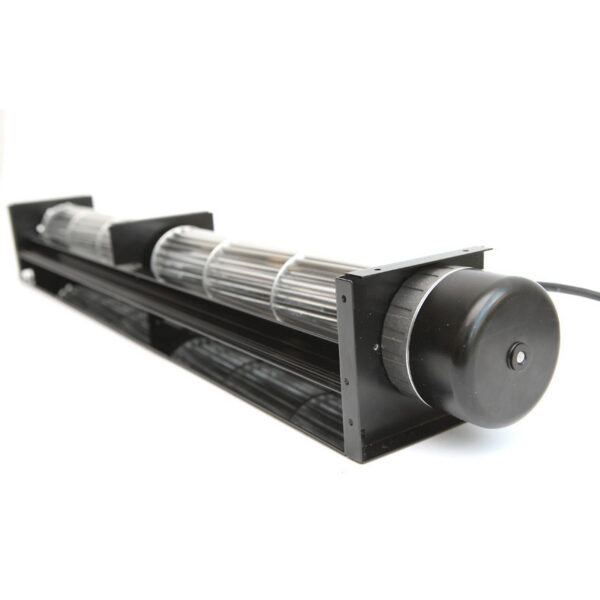

65mm dc 12V crossflow fans with low noise for ventilation cooling

  • Model NO. LWCD-65 Series
  • Delivery FOB/ EXW/ FCA /CIF
  • Minimum Order Quantity 100 packs
  • Supply Ability 50000 packs / Month
  • Country of Origin China
  • Stock Time 18-23 Days
Category:

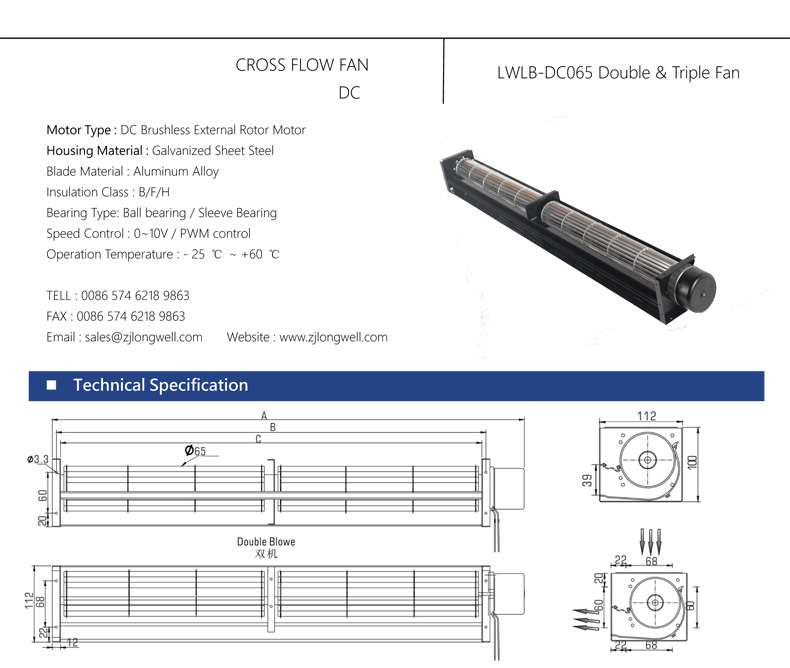

Technical Features :

Impeller Diameters : 65mm;

Fan length : Up to 1400mm ;

Motor Type : BLDC Motor with 0~10V / PWM speed Control ;
Material : Aluminum Alloy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

Model Dimention(mm） Voltage/
Frequency		 Current Speed Pressure Airflow Noise Blower
A B C V/HZ A rpm Pa m³/h dB(A)
LWCA-65520M-10 589 532 520 24 1.2 1800 64 705 50 single
LWCA-65520L-10 12 2.7 1800
LWCA-65620M-10 689 632 620 24 1.25  1800 64 825 51 single
LWCA-65620L-10 12 2.5 1800
LWCA-65720M-20 789 732 720 24 1.30  1800 64 860 50 double
LWCA-65720L-20 12 2.6 1800
LWCA-65750M-20 819 762 750 24 1.4 1800 64 880 50 double
LWCA-65750L-20 12 2.8 1800
LWCA-65820M-20 889 832 820 24 1.8 1800 65 920 53 double
LWCA-65820L-20 12 3 1800
LWCA-65870M-20 939 882 870 24 1.6  1800 65 970 53 double
LWCA-65870L-20 12 3.2 1800
LWCA-651100M-30 1174 1117 1105 24 4.2 1600 55 1225 56 triple
LWCA-651300M-30 1374 1317 1305 24 4.2 1600 55 1445 56 trible
Model NO.

LWCD-65 Series
Delivery

FOB/ EXW/ FCA /CIF
Minimum Order Quantity

100 packs
Supply Ability

50000 packs / Month
Country of Origin

China
Stock Time

18-23 Days
