AC Cross Flow Fans

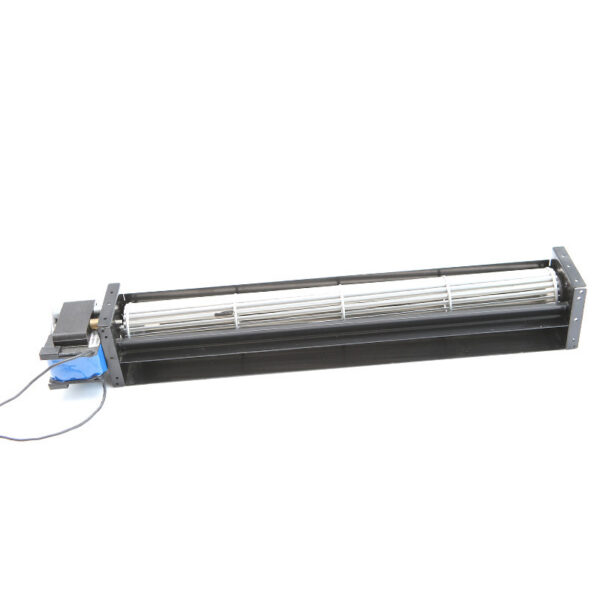

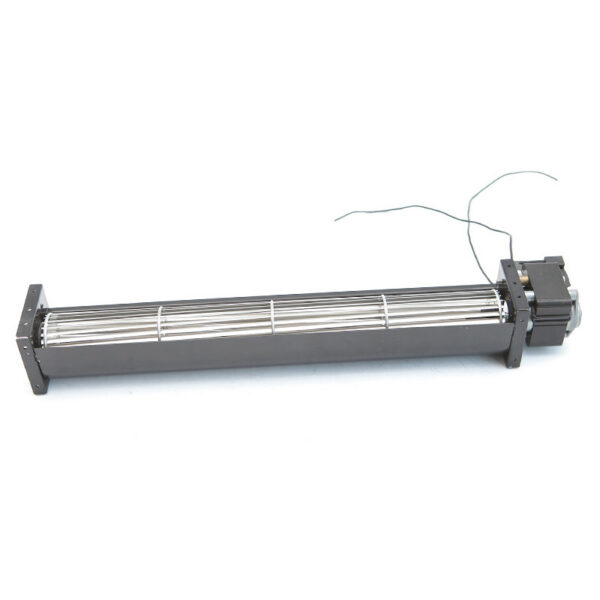

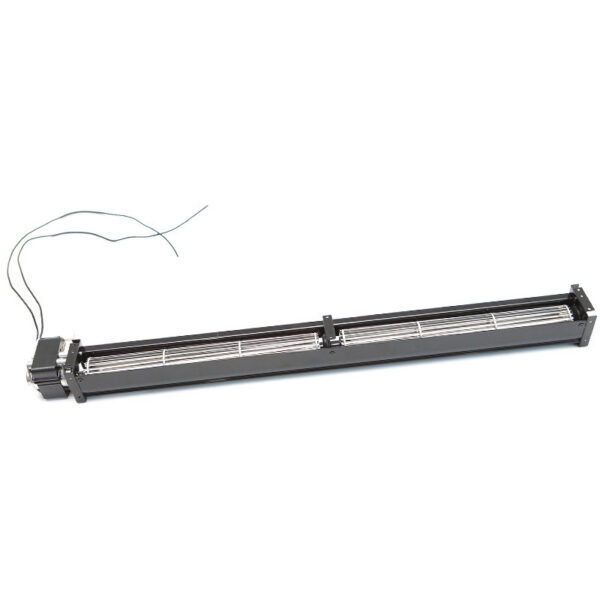

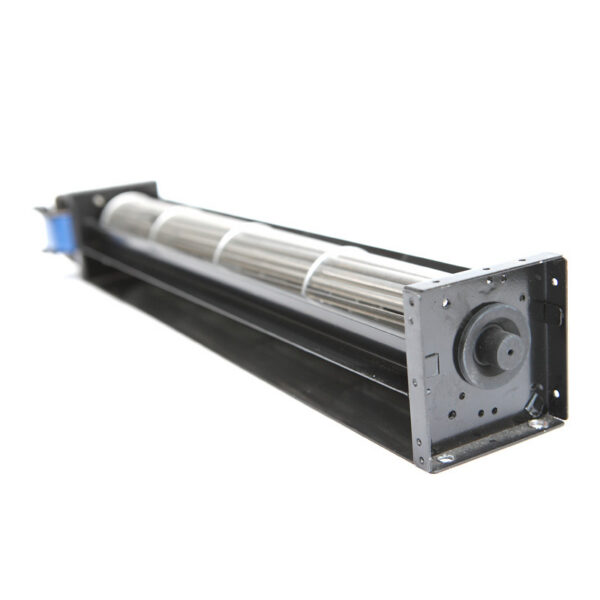

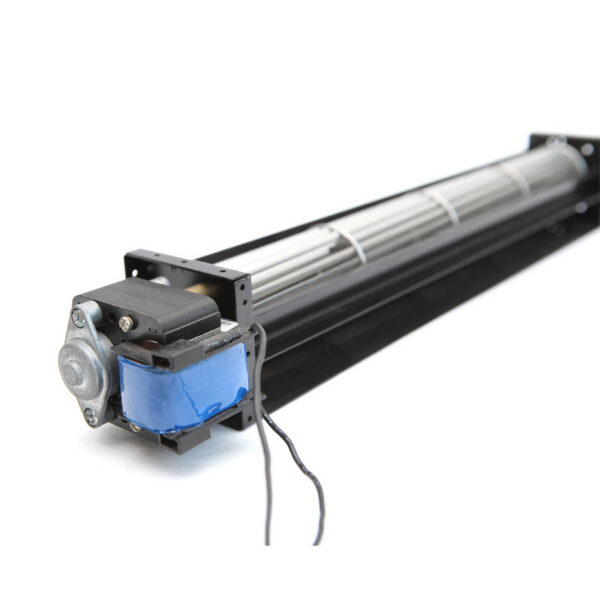

40mm AC 115v 230v cross flow fan tangential blower for ventilation , cooling

Model NO. LWCA-40 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: AC Cross Flow Fans

Technical Features :

Impeller Diameters : 40mm;

Fan length : Up to 1056mm ;

Motor Type : AC Shaded Pole Motor ;
Housing Material :Galvanized Metal Sheet ;

Impeller Material : Aluminum Alooy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

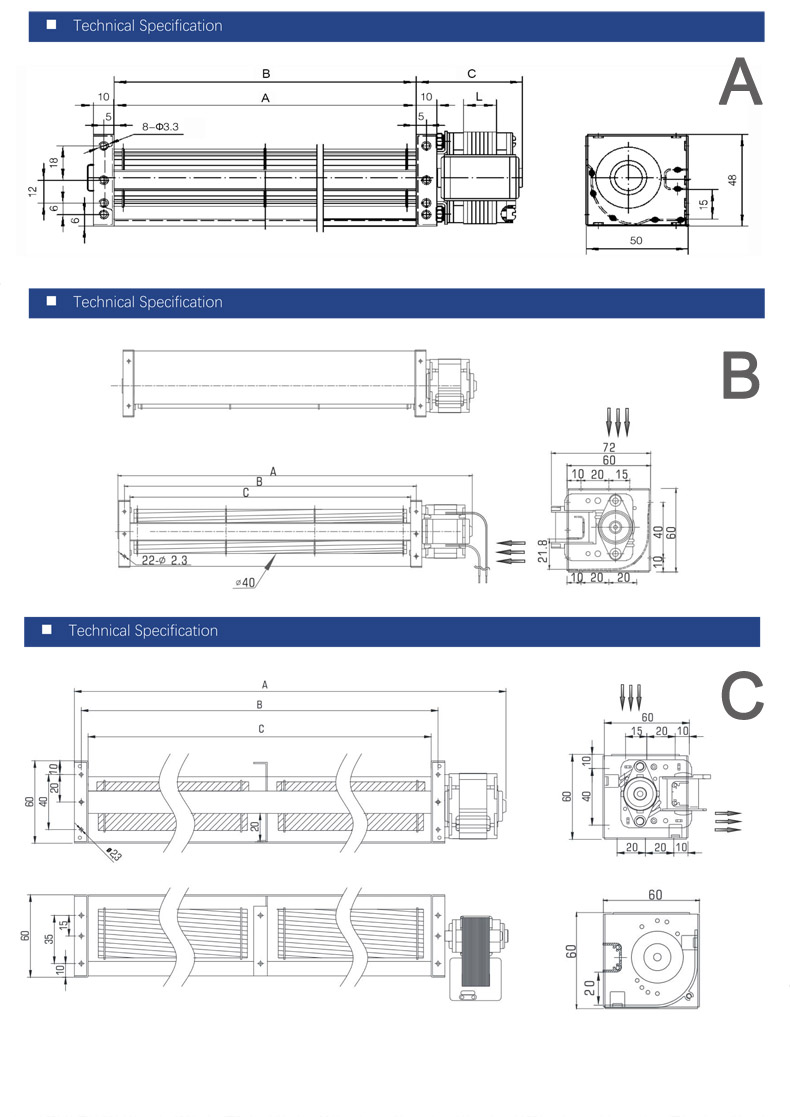

Model	Dimention(mm）			Voltage	Frequency	Power	Speed	Pressure	Airflow	Noise
Model	A	B	C	V	Hz	W	RPM	mmH2O/Pa	m³/h	dB(A)
LWCA-40120S-10	120	128	40	220	50	8	2560	1.3/13	45	37
LWCA-40180S-10	180	188	40	220	50	11	2450	1.8/18	68	38
LWCA-40240S-10	240	248	40	220	50	13	2300	2.0/20	83	38
LWCA-40300S-10	300	308	51	220	50	16	2500	2.2/23	110	43
LWCA-40360S-10	360	368	51	220	50	20	2500	2.4/24	135	48
LWCA-4090S-10	158	108	98	120	60	16.2	3200	25	40	35
LWCA-4090S-10	158	108	98	230	50	13.9	2700	20	36	35
LWCA-40150S-10	218	170	160	120	60	16.8	3000	24	60	36
LWCA-40150S-10	218	170	160	230	50	14.6	2500	19	57	36
LWCA-40190S-10	265	208	198	120	60	17.2	2900	24	77	38
LWCA-40190S-10	265	208	198	230	50	14.5	2400	19	68	36
LWCA-40250S-10	316	260	250	120	60	21.9	3000	24	98	38
LWCA-40250S-10	316	260	250	230	50	18.5	2500	19	90	37
LWCA-40290S-10	370	310	300	120	60	22.6	2800	23	113	39
LWCA-40290S-10	370	310	300	230	50	18.8	2400	19	106	38
LWCA-40350S-10	417	358	348	120	60	20.5	2900	24	152	39
LWCA-40350S-10	417	358	348	230	50	19.6	2500	19	132	37
LWCA-40420S-10	491	430	420	120	60	21.6	2700	22	170	38
LWCA-40420S-10	491	430	420	230	50	20	2500	19	163	37
LWCA-40530S-20	600	540	530	220	50	20	2000	19	140	36
LWCA-40610S-20	680	620	610	220	50	20	1950	19	150	35
LWCA-40700S-20	770	710	700	220	50	21	1750	18	155	34
LWCA-40800S-30	870	810	800	220	50	16	2300	18	205	36
LWCA-40854S-30	924	864	854	220	50	16	2200	18	209	37
LWCA-40920S-30	990	930	920	220	50	17	2100	18	222	37
LWCA-401055S-30	1125	1065	1055	220	50	17	2100	18	255	38

Model NO.	LWCA-40 Series
Delivery	FOB/ EXW/ FCA /CIF
Minimum Order Quantity	100 packs
Supply Ability	50000 packs / Month
Country of Origin	China
Stock Time	18-23 Days
