AC Cross Flow Fans

50mm AC tangential fan blower 115V 230V

Model NO. LWCA-50 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: AC Cross Flow Fans

Technical Features :

Impeller Diameters : 50mm;

Motor Type : AC Shaded Pole Motor ;
Housing Material :Galvanized Metal Sheet ;

Impeller Material : Aluminum Alooy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

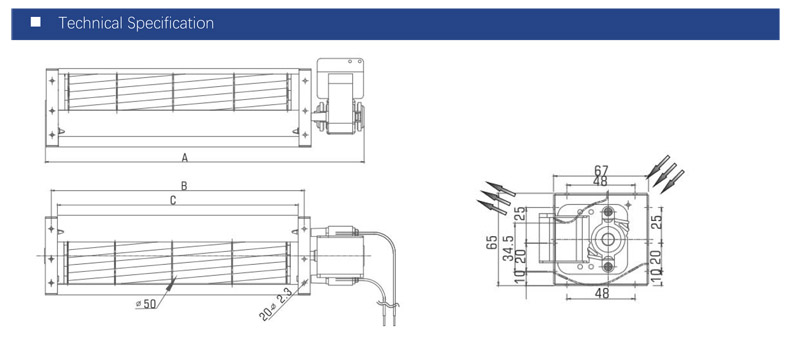

Model	Dimention(mm）			Voltage	Frequency	Power	Speed	Pressure	Airflow	Noise
Model	A	B	C	V	Hz	W	RPM	mmH2O/Pa	m³/h	dB(A)
LWCA-5090S-10	163	110	100	120	60	20.7	3200	44	60	40
LWCA-5090S-10	163	110	100	220	50	17	2700	37	50	40
LWCA-50150S-10	223	170	160	120	60	21.6	3100	41	106	40
LWCA-50150S-10	223	170	160	220	50	17.3	2500	37	90	40
LWCA-50190S-10	263	210	200	120	60	23.3	3000	40	150	42
LWCA-50190S-10	263	210	200	220	50	17.6	2500	38	125	42
LWCA-50250S-10	318	260	250	120	60	19.7	3000	42	190	44
LWCA-50250S-10	318	260	250	220	50	19.8	3600	39	153	42
LWCA-50290S-10	368	310	300	120	60	20	2800	45	199	45
LWCA-50290S-10	368	310	300	220	50	19.6	2500	40	187	43
LWCA-50350S-10	428	370	360	120	60	20.9	2700	49	225	48
LWCA-50350S-10	428	370	360	220	50	20	2500	44	216	48
LWCA-50420S-10	488	430	420	120	60	22.1	2500	54	252	52
LWCA-50420S-10	488	430	420	220	50	21.1	2300	49	206	49

Model NO.	LWCA-50 Series
Delivery	FOB/ EXW/ FCA /CIF
Minimum Order Quantity	100 packs
Supply Ability	50000 packs / Month
Country of Origin	China
Stock Time	18-23 Days
