AC Cross Flow Fans

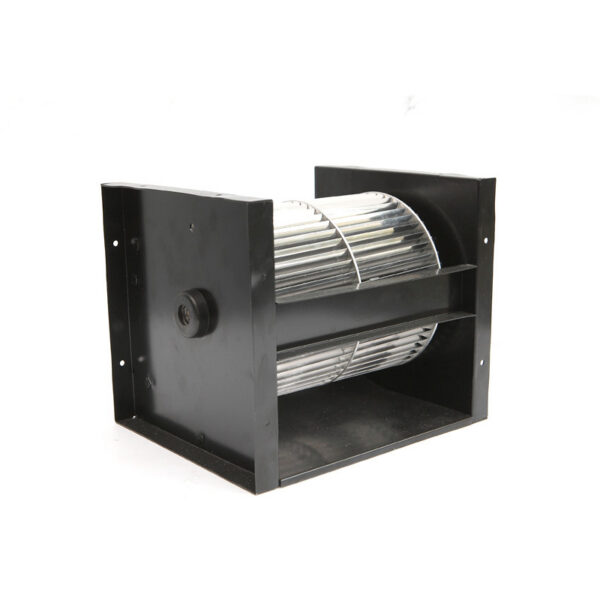

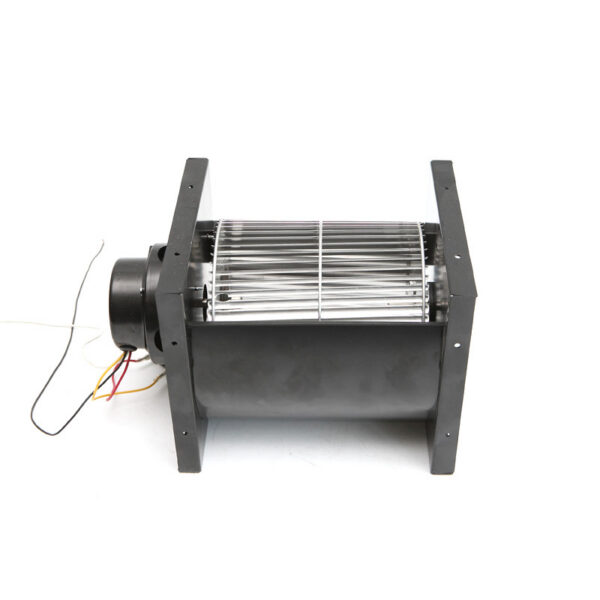

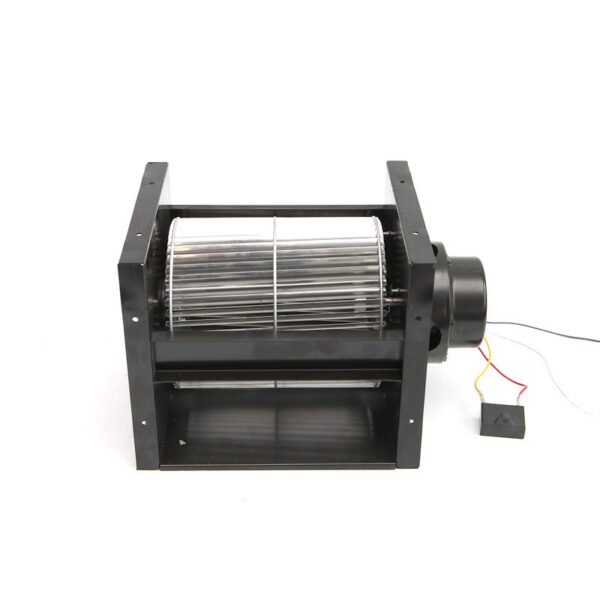

150mm Cross flow blower with AC motors

Model NO. LWCA-C150 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: AC Cross Flow Fans

Technical Features :

Impeller Diameters : 150mm;

Motor Type : AC capacitor Motor ;
Housing Material :Galvanized Metal Sheet ;

Impeller Material : Aluminum Alloy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

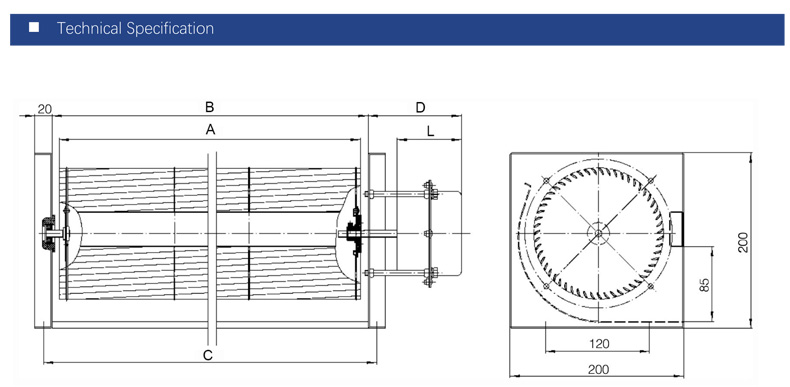

Model	Dimension(mm）					Voltage	Frequency	Power	Speed	Pressure	Airflow	Noise
Model	A	B	C	D	L	V	Hz	W	rpm	mmH2O/Pa	m³/h	dB(A)
LWCA-150180S-10	260	270	298	108	75	220	50	95	1160	9.9/99	1080	58
LWCA-150350S-10	350	368	388	108	75	220	50	125	1130	9.8/98	1460	59
LWCA-150500S-10	500	518	538	108	75	220	50	165	1050	10.0/100	2050	61
LWCA-150700S-10	700	718	732	112	78	220	50	225	1000	10.2/102	2850	64
LWCA-150900S-10	900	918	938	125	90	220	50	285	960	9.2/92	3250	68
LWCA-1501200S-10	1200	1215	1235	200	150	220	50	335	900	9.1/91	4250	71

Model NO.	LWCA-C150 Series
Delivery	FOB/ EXW/ FCA /CIF
Minimum Order Quantity	100 packs
Supply Ability	50000 packs / Month
Country of Origin	China
Stock Time	18-23 Days
