AC Cross Flow Fans

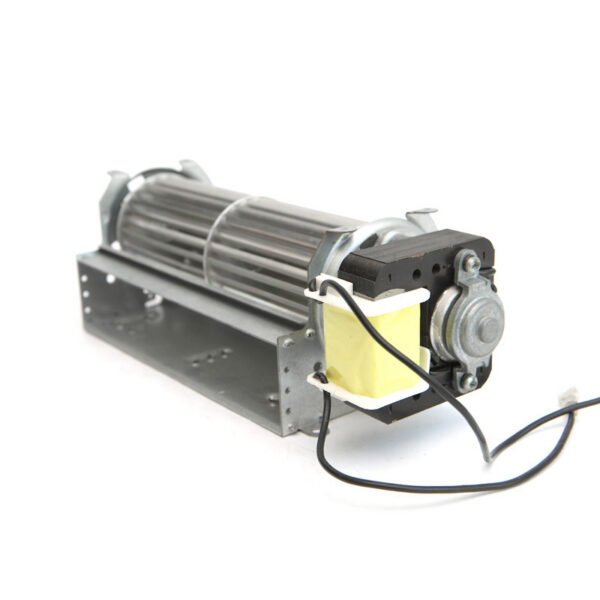

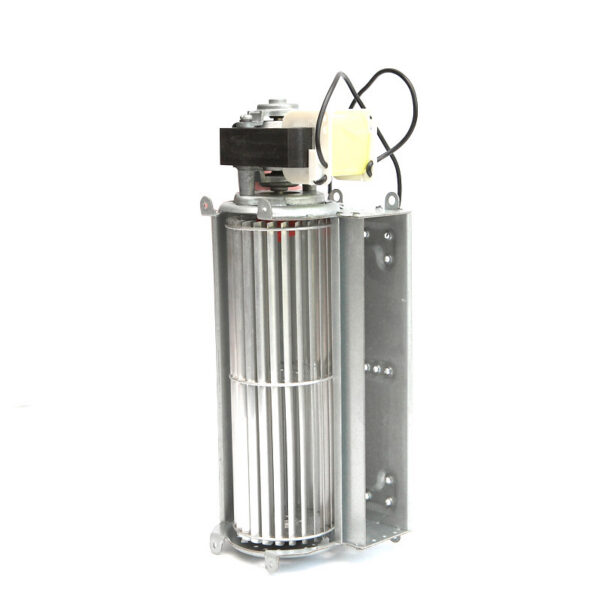

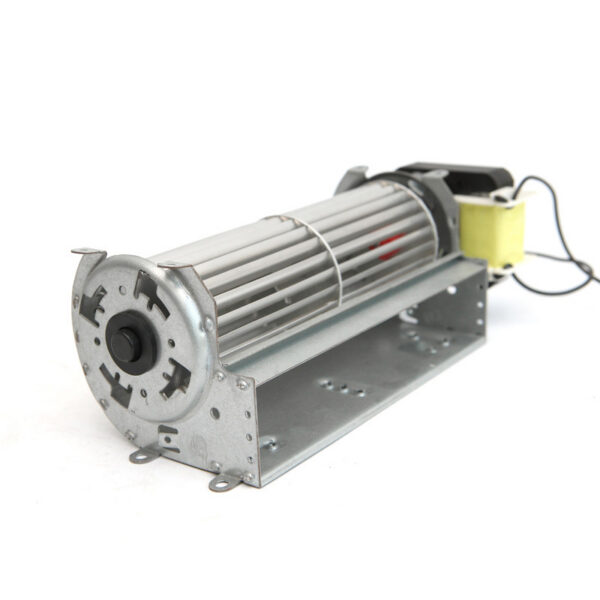

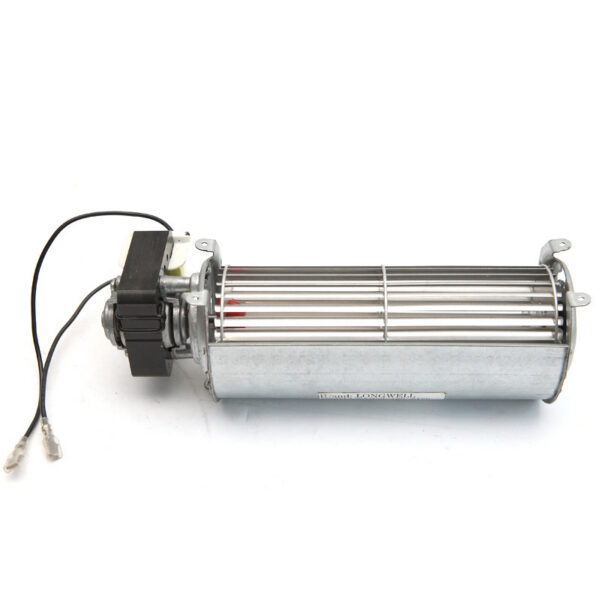

65mm High efficiency low noise AC Cross flow fan

Model NO. LWCA-65 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: AC Cross Flow Fans

Technical Features :

Impeller Diameters : 65mm;

Motor Type : AC Shaded Pole Motor ;
Housing Material :Galvanized Metal Sheet ;

Impeller Material : Aluminum Alooy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

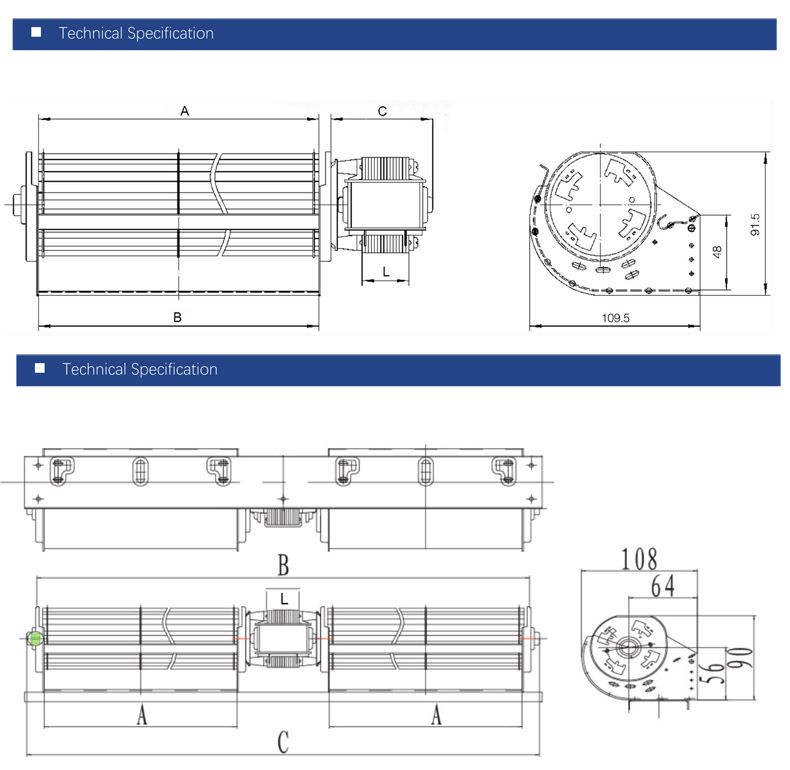

Model	Dimension(mm）				Voltage	Frequency	Power	Speed	Pressure	Airflow	Noise
Model	A	B	C	L	V	Hz	W	rpm	mmH2O/Pa	m³/h	dB(A)
LWCA-65120S-10	120	120	56	16	220	50	24	2200	8.1/8.1	210	46
LWCA-65180S-10	180	180	56	16	220	50	43	2250	8.2/8.2	320	50
LWCA-65240S-10	240	240	60	20	220	50	50	2180	8.1/8.1	410	51
LWCA-65300S-10	300	300	60	20	220	50	56	2000	7.3/73	465	51
LWCA-65360S-10	360	360	68	30	220	50	60	1800	6.7/67	500	49
LWCA-65420S-10	420	420	68	30	220	50	60	1600	5.5/55	505	50
LWCA-65480S-10	480	480	80	40	220	50	65	1500	5.5/55	540	51
LWCA-65120S-20	120	355	360	25	220	50	54	2300	8.7/87	275	38
LWCA-65180S-20	180	485	590	25	220	50	51	2200	6.8/68	300	39
LWCA-65240S-20	240	585	590	28	220	50	55	2000	6.7/67	330	40
LWCA-65300S-20	300	795	800	30	220	50	72	1650	6.4/64	430	43

Model NO.	LWCA-65 Series
Delivery	FOB/ EXW/ FCA /CIF
Minimum Order Quantity	100 packs
Supply Ability	50000 packs / Month
Country of Origin	China
Stock Time	18-23 Days
