AC Cross Flow Fans

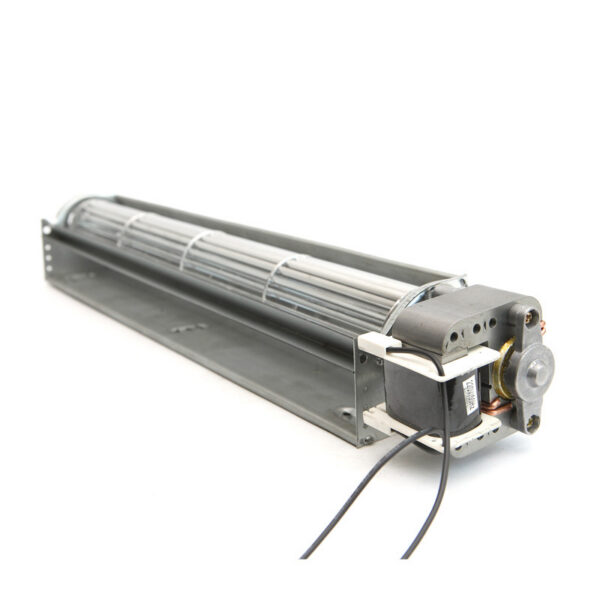

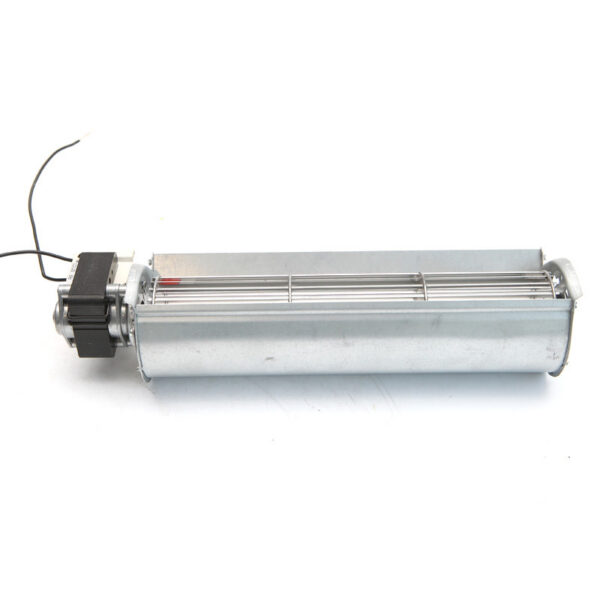

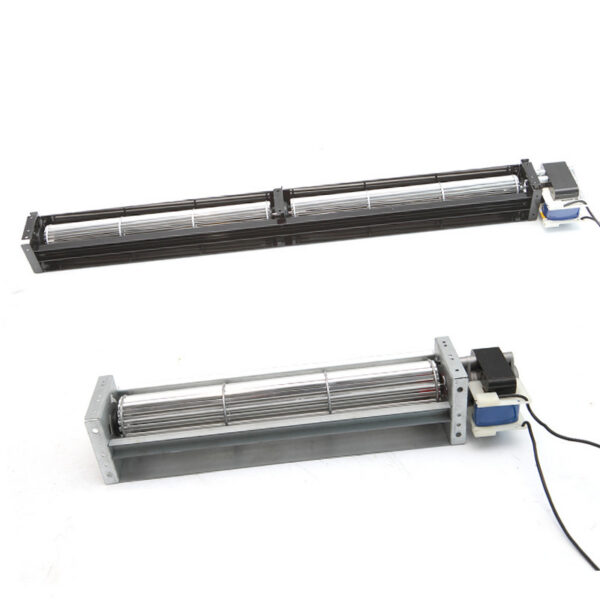

45mm AC 230v cross flow fan for ventilation , cooling

Model NO. LWCA-45 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: AC Cross Flow Fans

Technical Features :

Impeller Diameters : 45mm;

Fan length : Up to 1056mm ;

Motor Type : AC Shaded Pole Motor ;
Housing Material :Galvanized Metal Sheet ;

Impeller Material : Aluminum Alooy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

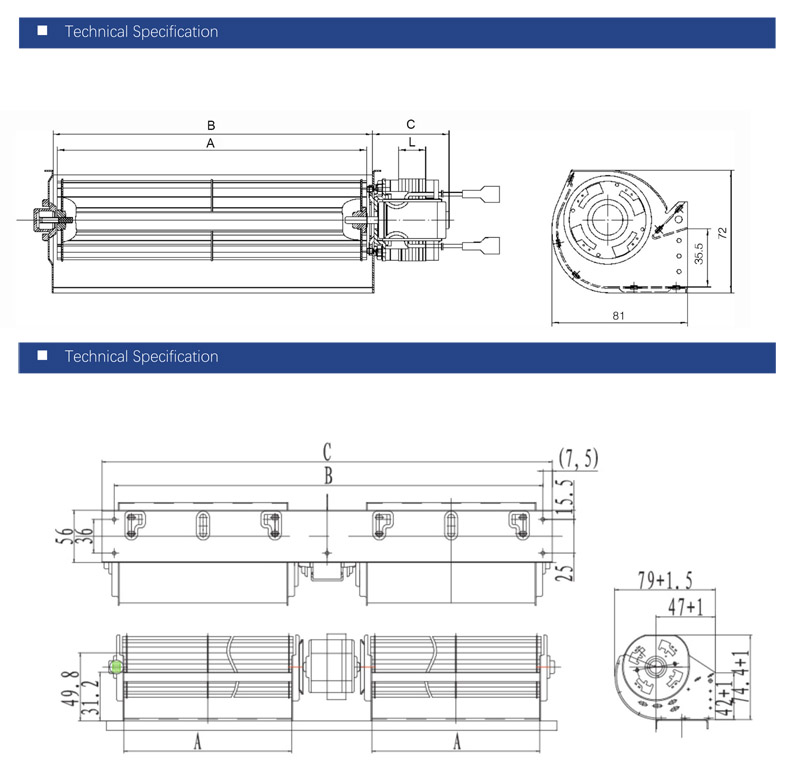

Model	Dimention(mm）			Voltage	Frequency	Power	Speed	Pressure	Airflow	Noise
Model	A	B	C	V	Hz	W	RPM	mmH2O/Pa	m³/h	dB(A)
LWCA-45120S-10	120	126	45	220	50	15	2200	6.7/67	83	41
LWCA-45180S-10	180	186	45	220	50	27	2350	7.2/72	135	43
LWCA-45240S-10	240	246	45	220	50	33	2200	6.9/69	180	43
LWCA-45300S-10	300	306	54	220	50	33	2100	6.9/69	204	48
LWCA-45360S-10	360	366	54	220	50	42	1800	6.8/68	235	51
LWCA-4512S-20	120	340	346	220	50	30	2300	5.7/57	158	43
LWCA-45420S-20	180	480	486	220	50	33	2200	6.2/62	219	45
LWCA-45240S-20	240	580	586	220	50	47	2000	6.5/65	329	46
LWCA-45300S-20	300	700	706	220	50	39	1650	4.7/47	348	47

Model NO.	LWCA-45 Series
Delivery	FOB/ EXW/ FCA /CIF
Minimum Order Quantity	100 packs
Supply Ability	50000 packs / Month
Country of Origin	China
Stock Time	18-23 Days
