Types :
|

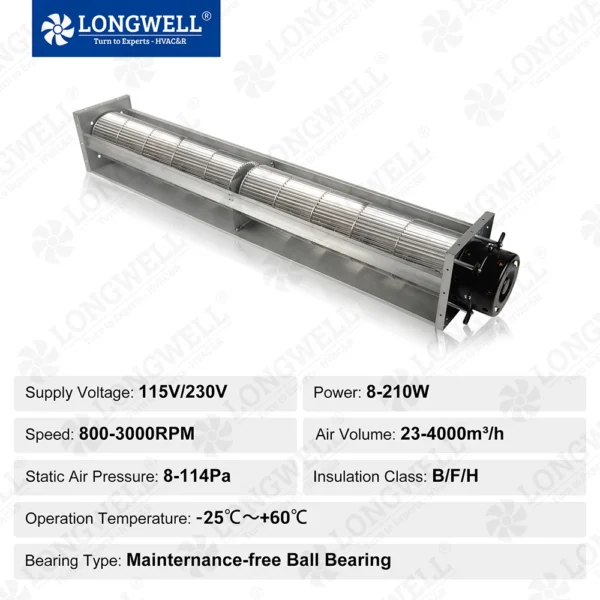

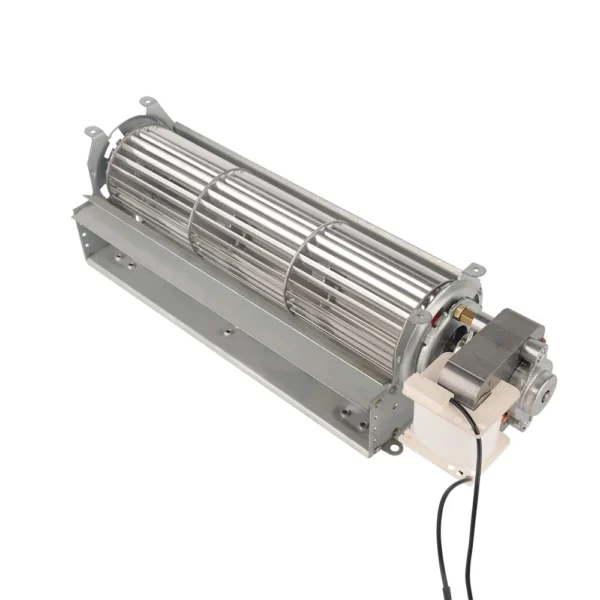

60mm AC Low noise 220v 115V mini cross flow fan squirrel cage blower fan cross flow cooling fan
|
|
Voltage Ranges :
|
230V
|
|
Frequency :
|
50/60 Hz
|
|
Diamter :
|
60mm ( impeller diameters )
|
|
Motor Types :
|
BLEC External Rotor Motor
|
|
Speed Control :
|
0-10V Signal / PWM / RS485(Optional)
|
|
Max.ambient Temp:
|
-25℃～ +60℃
|
|
Certificating :
|
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
|
|
Protection Level:
|
IP44 ,IP54,IP55
|
|
Electronic Protection:
|
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
|
|
Working & Storage
|
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
|
Balancing
|
According to JB/T 9101-1999 requirements G6.3
|
|
Product Standards :
|
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
|
|
Mainly Applications
|
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans
|
Ningbo Longwell Electric Technology Co.,LTD
Business Partner :GREE,BYD,Carrier,Midea,Systemair,LG,FRICO,Daikin,SIEMENS,YORK,etc
Go Further with LONGWELL

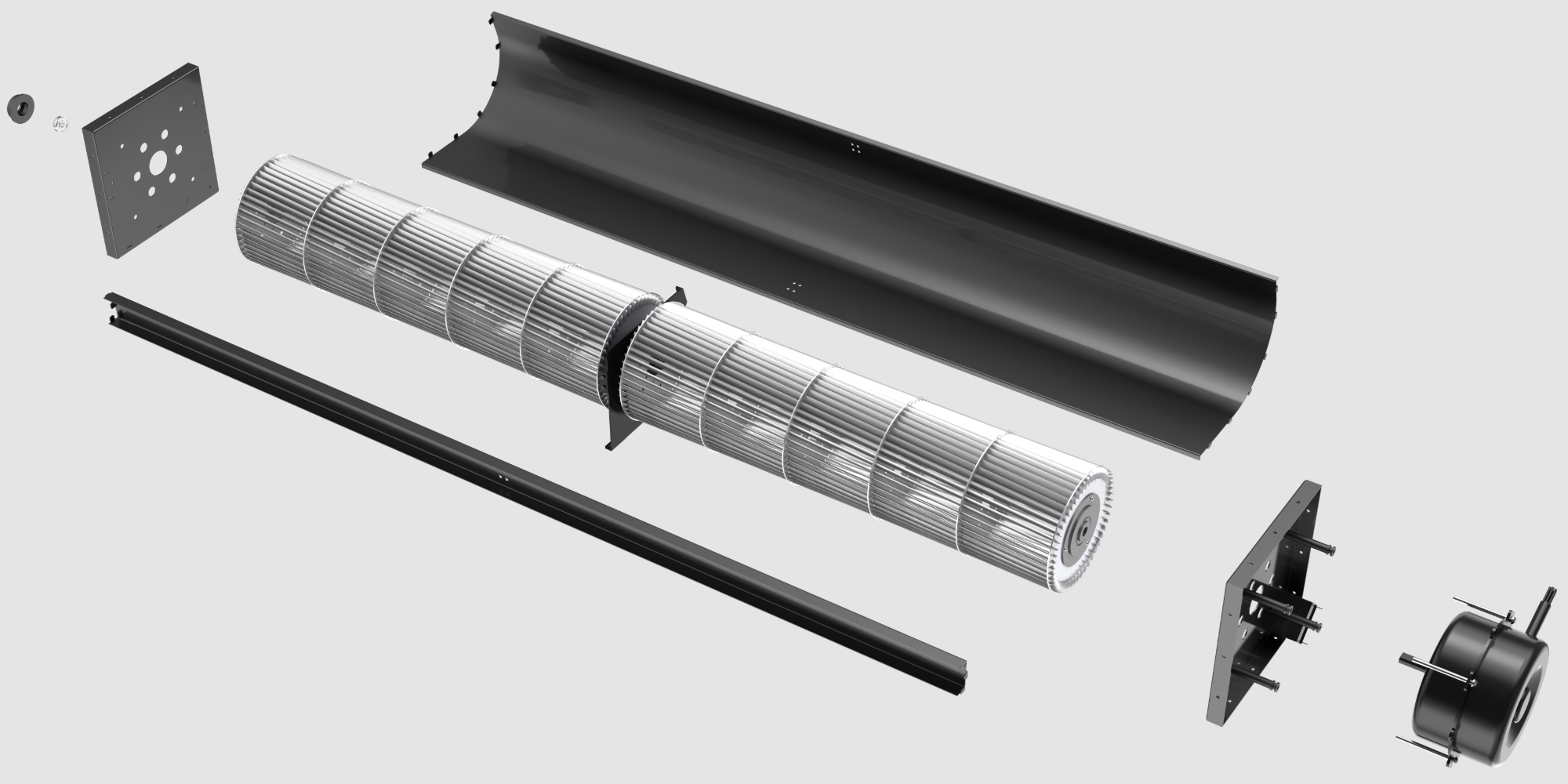

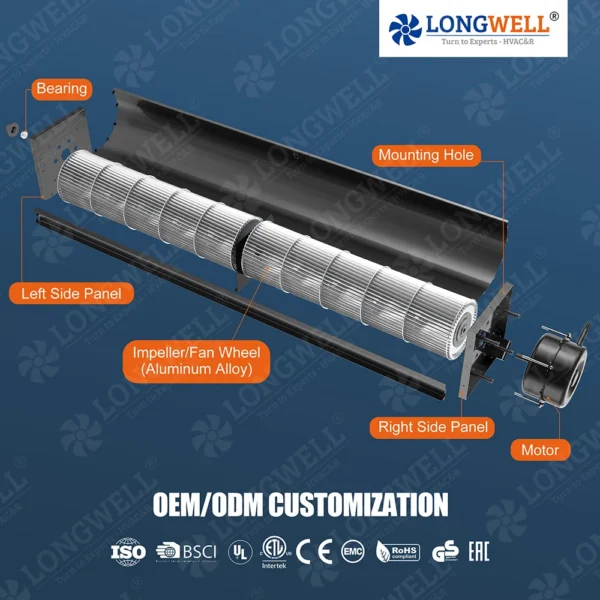

Cross Flow Fans |High quality Motor| 0-10V/PWM| High Air FLOW | Highly customizable

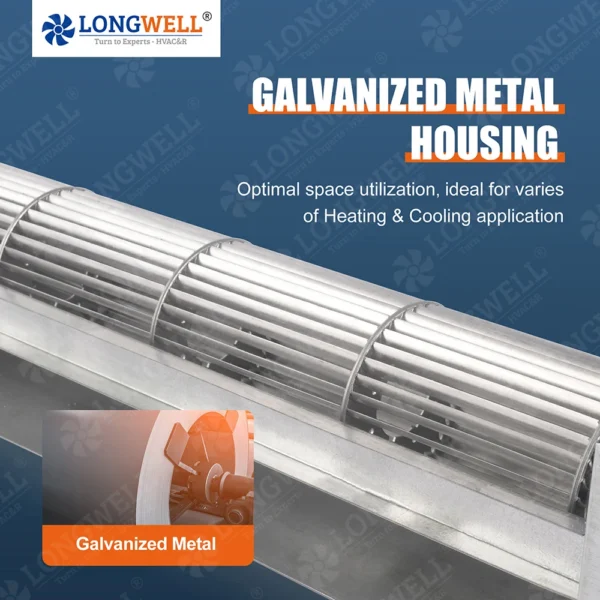

Housing:LONGWELL offer metal housing, mostly of aluminum.
Impeller: LONGWELL impellers ‘s diameter ranges from 25mm to 150mm and 76mm to 1200mm in length ( single – double – triple type )
Bearings: NMB or NSK ball bearings for our tangential fans.
Voltages: LONGWELL DC cross flow fans are workable in 12V,/24V/48VDC,115/230Vac&EC
Speed Control System : 0-10V / PWM (DC/EC Motor) or 1-2-3 Speeds(AC Motor)
Best selling :40mm Cross flow fan -SUPER quiet design down to 20dBA
Mainly be used in Heating & Cooling system: heaters ,Convectors, floor heating system ,air exchanger ,etc

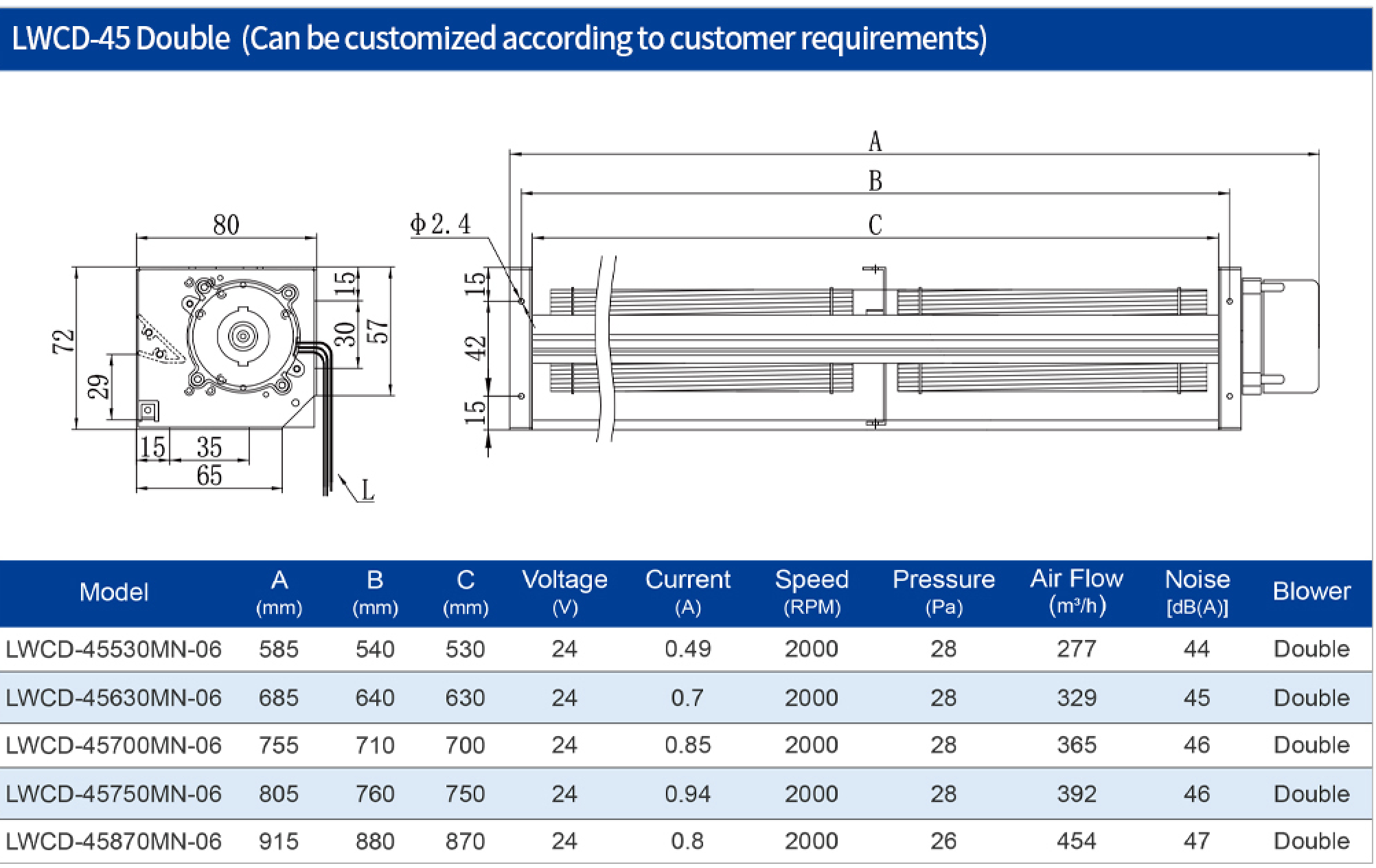

Hot sale :45mm Cross flow fan – with 0-10V & PWM Speed control system
Mainly be used in Heating & Cooling system: heaters ,Convectors, floor heating system ,air exchanger ,etc

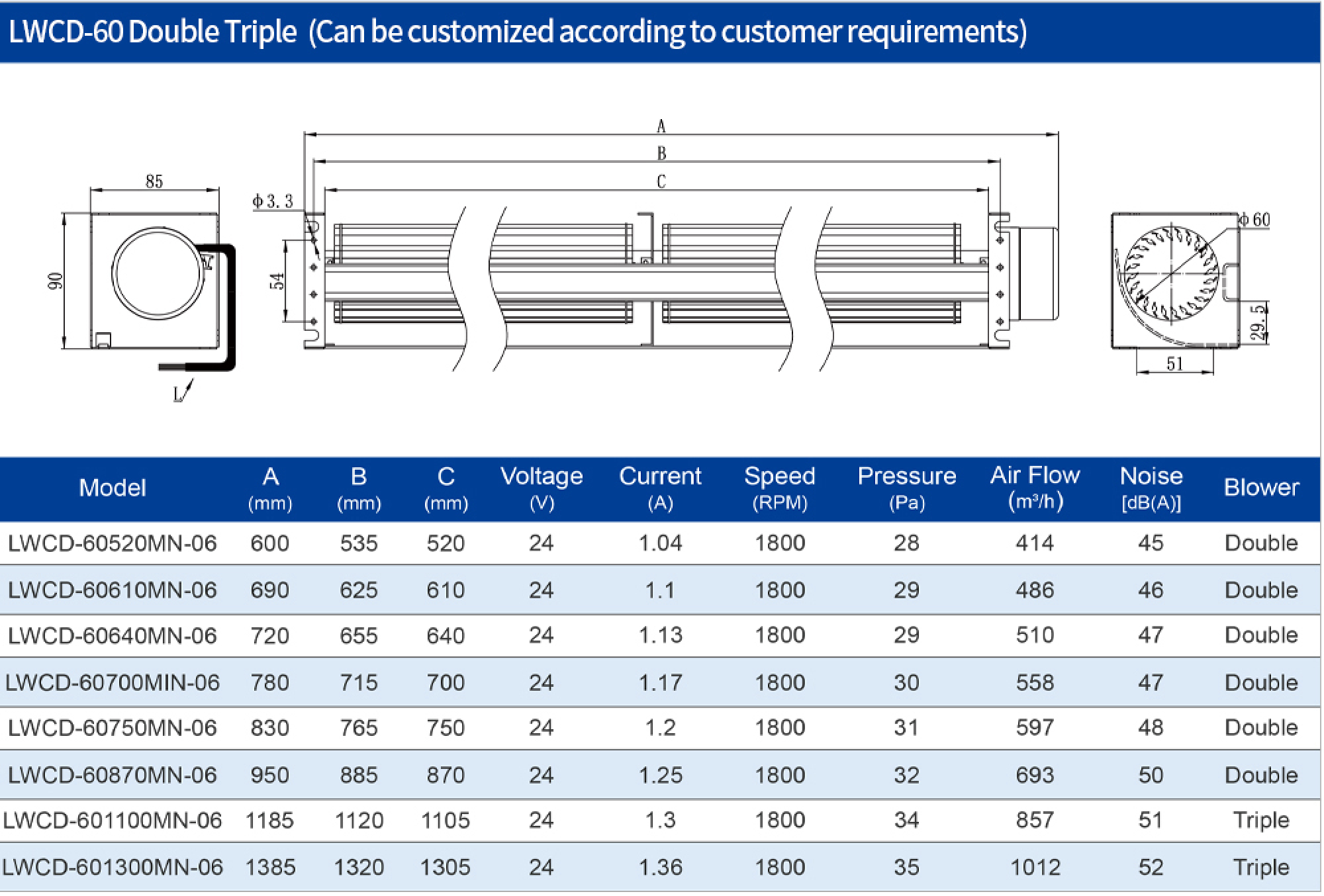

Hot sell : 60mm Cross Flow fans -Aluminum material with 3phase low noise BLDC Motor
Used in Ventilation units , cooling system ,Heaters ,etc — 0-10V/PWM stepless speed control system
view more >>Best Selling
NOTES:
The price attached to the above products is only the reference price or the price reference under the standard parameter configuration, please contact our sales engineer for the specific price, to provide you with the most accurate quotation and discount
The Professional’s Choice for LONGWELL Cross Flow Fans
High quality Motor| 0-10V/PWM| High Air FLOW | Highly customizable

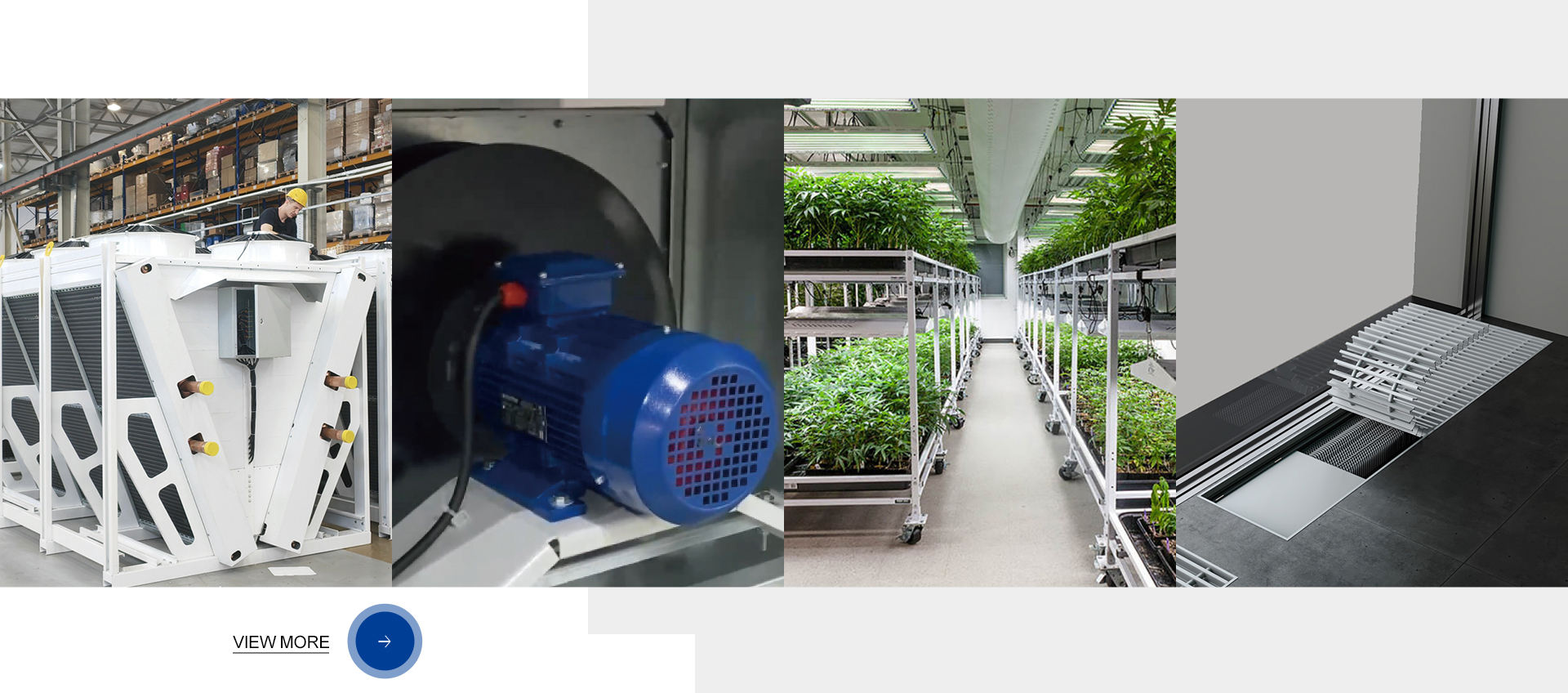

LONGWELL-Project & Customer Applicaiton
Heaating Convectors ,Heaters ,Fireplace, Floor heating system ,AIR-CURTAIN,Air conditioning ,Refrigerator,TRAIN_Ventilation system ,Medical machine,3d -printer,Greenhouse,etc
PROJECT : Floor heating Convector
Adaptation product：
30,40,45mm diameter cross flow fan
Motor: BLDC motor
Voltage : 12V/24V
Speed control : PWM stepless control

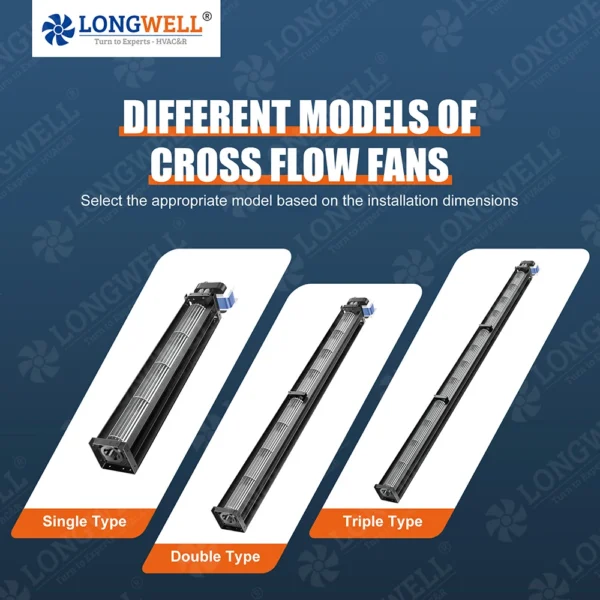

Blower type: single -double -triple
PROJECT : Fireplace
Adaptation product：
48,60,65mm diameter cross flow fan
Motor: AC Shaded pole motor
Voltage : 115V/230V
Speed control : 2 speed & 3 speed
Blower type: single -double
PROJECT : Heating Convector
Adaptation product：
30,40,45mm diameter cross flow fan
Motor: BLDC motor
Voltage : 12V/24V
Speed control : PWM stepless control
Blower type: single -double -triple
Heating Convector
Air Curtain
Air Conditioning
Fire Place
Refrigeration
Train Ventilation
Medical Machine -Ventilation
3D-Printer
Greenhouse-Plant system
FAQs :
Q1. what’s the advantages of your cross flow fan ?
-LONGWELL cross flow is special design for low noise purpose only . noise even low to 19 dBA ;
– We have large production range from 20mm to 200mm ;
– We have heavy duty design which makes 4000rpm for diameter less 60mm，150mm dia fan makes over 2700rpm.
Q2. Does Longwell provide any speed control options for DC cooling fans ?
Reply :
Yes , Longwell can provide some speed regulator solutions according customer’s requirements ,such as :
– The 0-10V/ pwm controller is for use with the full range of cross flow fans / dc cooling fans. Powered by the 10VDC it provides infinitely variable, manual speed control between 0% and 100% ;
– Can control multiple fans running at the same speed ;
– Stepless control knob for infinitely variable speed setting .
Q3. how we connect the tangential fan to our application ,is there a wiring diagram ?
Please check the speed control of your application first ( is it PWM or 0-10V ) ,

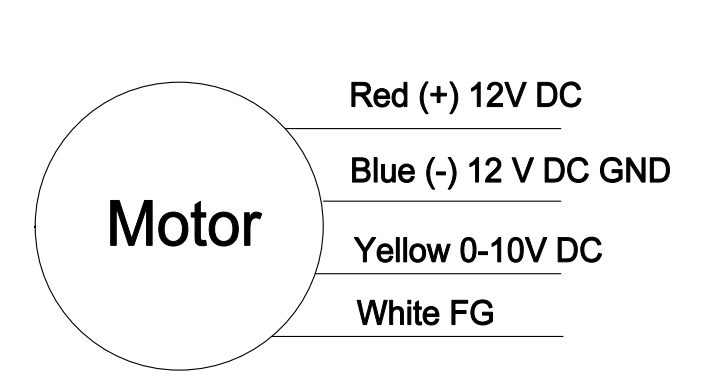

Please refer to the wiring diagram of 0-10v series as below :
for more details please contact us for professional engineer service ,
Q4. Life span of this kind of dc cross flow fan ?
Longwell EC external rotor motor surpasses efficiency class IE4, magnets with no rare earths, maintenance-free ball bearings (sealed) with long-term lubrication, theoretical nominal service life of at least 40,000 hours of operation, installation with horizontal and vertical motor shaft; soft start, integrated current limitation. Integrated electronics, quiet commutation logic; 100 % speed controllable; control signal 0-10 V DC / PWM; tach output.
Q5. Are there any other AC DC EC cross flow fans options or solutions for selection ?
Yes ,sure .

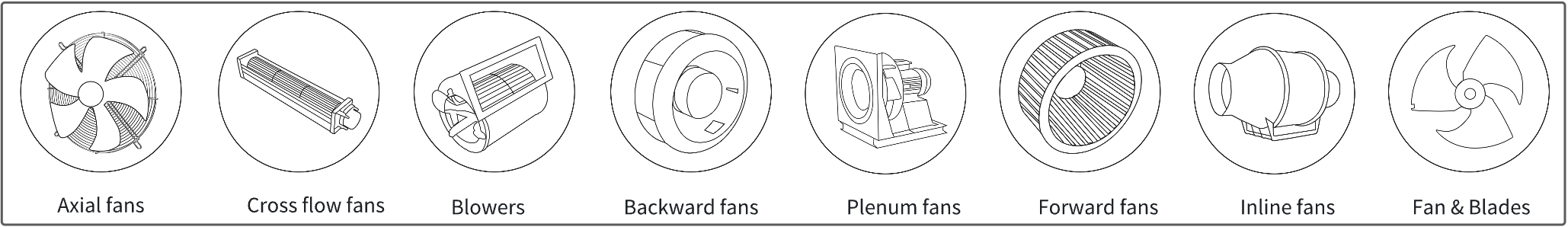

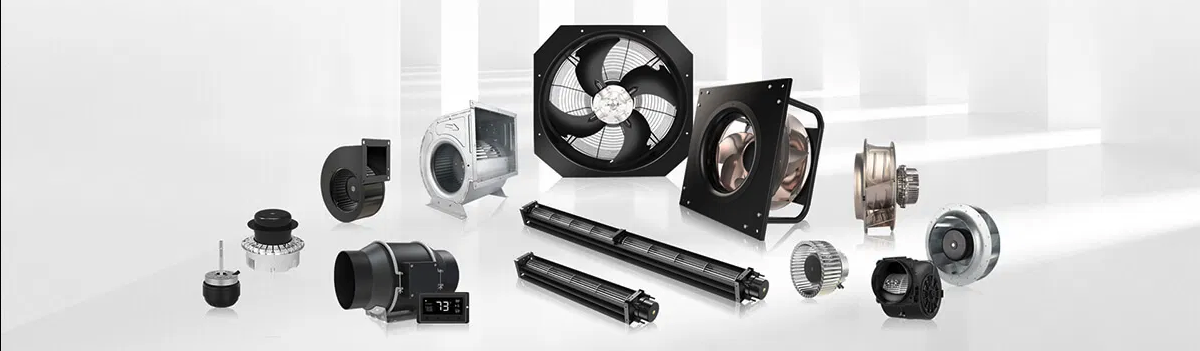

LONGWELL is a professional manufacturer of fans, blowers , motors and components for heating ,venlation, air conditioner and refrigeration applications ,specialist in centrifugal fans, axial fans, AC /BLDC cross flow fans, single / double forward curved fan BLOWERS ,AC / BLDC/ECM motors as well as industrial fan blowers, inline duct fans , Poultry ventilation fans ( AC / DC /EC ) , etc. Please check below photos for reference :
Longwell as a known and trustworthy DC cross flow fan Supplier in China , we assure you the best product quality and service.
If you are looking for DC cross flow fans for your manufacturing applications or electronic devices, do go through the features and specifications of our various models of DC cross flow fans. In case you require any further information or have technical queries, you can contact us directly at :
