DC Cross Flow Fans

50mm dc tangential fans 12v dc cooling fans

Model NO. LWCD-50 Series
Delivery FOB/ EXW/ FCA /CIF
Minimum Order Quantity 100 packs
Supply Ability 50000 packs / Month
Country of Origin China
Stock Time 18-23 Days

Category: DC Cross Flow Fans

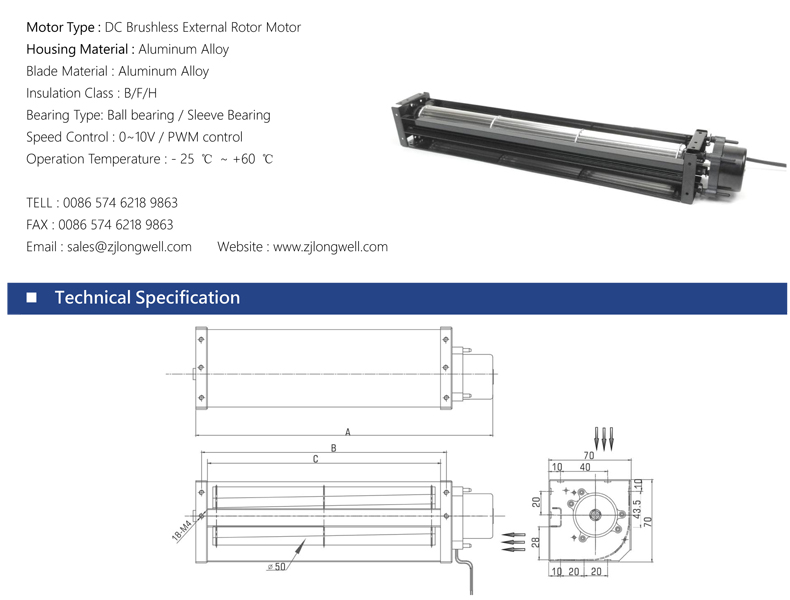

Technical Features :

Impeller Diameters : 50mm;

Fan length : Up to 1400mm ;

Motor Type : BLDC Motor with 0~10V / PWM speed Control ;
Material : Aluminum Alloy ;
Bearing Type: Ball bearing ;
Operation Temperature : – 25 ℃ ~ +60 ℃ .

Model	Dimention(mm）			Voltage/ Frequency	Current	Speed	Pressure	Airflow	Noise
Model	A	B	C	V/HZ	A	rpm	Pa	m³/h	dB(A)
LWCD-5090L-10	155	110	100	12	0.16	2700	19	50	38
LWCD-5090M-10	155	110	100	24	0.1	2700	19	50	38
LWCD-50150L-10	215	170	160	12	0.21	2500	13	77	39
LWCD-50150M-10	215	170	160	24	0.1	2500	13	77	39
LWCD-50190L-10	256	210	200	12	0.28	2600	14	105	41
LWCD-50190M-10	256	210	200	24	0.15	2600	14	105	41
LWCD-50250L-10	302	260	250	12	0.35	2500	13	135	42
LWCD-50250M-10	302	260	250	24	0.18	2500	13	135	42
LWCD-50290L-10	340	310	300	12	0.35	2500	13	155	43
LWCD-50290M-10	340	310	300	24	0.18	2500	13	155	43
LWCD-50350L-10	410	370	360	12	0.4	2400	13	178	44
LWCD-50350M-10	410	370	360	24	0.21	2400	13	178	44
LWCD-50420L-10	475	430	420	12	0.46	2300	12	205	46
LWCD-50420M-10	475	430	420	24	0.23	2300	12	205	46
